Product application: Banks, prisons, hospitals, schools, community, hotels, etc
The Watec WAT-704RFA P3.7 EIA is comprised of a miniature camera attached to a flexible arm, at the end of which is a screw-on mounting bracket. This configuration will allow the camera to be mounted on a flat surface such as a desk, wall or ceiling and quickly pointed in the direction it needs to see. A camera of this type is a useful tool in a variety of security, industrial, medical and business imaging applications.
Camera with Flexible Arm
The camera comes attached to a flexible arm, allowing users to quickly change the camera's pointing direction without having to remove the camera from its installation point. The camera can also be brought close to an object without losing focus, a useful feature for applications looking to display documents or small items on a large screen.
Watec WAT-704RFA P3.7 EIA Miniature B/W Camera w/17cm Flexible Arm & 3.7mm Flat Pinhole Lens
* 3.7mm, F4.5 Flat Pinhole Lens
* Mount with 6.8" (17cm) Flexible Arm
* 3-Year Warranty
Watec WAT-704RFA:
* Product application: Banks, prisons, hospitals, schools, community, hotels, etc
* Ultra-compact design (cylinder containing gimbals)
* Illumination automatic electronic iris
* Optional multi-focal length lens
Watec WAT-704RFA Camera Specifications:
| Model |
WAT-704RFA |
| CCD |
1/4¡å |
| Effective Pixels |
290K |
| Synchronizing System |
inter-sync |
| Scanning system |
2:1 |
| video output |
1Vpp-75¦¸ |
| Horizontal resolution |
380TVL(G3.8) |
| minimum illumination |
0.08LuxF2.0 |
| automatic gain control |
5~32dB |
| SNR |
46dB |
| gray properties |
¦Ã¨P0.45 |
| Auto electronic shutter |
EI(1/50~1/100,000sec) |
| Mount |
M13P=1.0 |
| FOCAL LENGTH |
G1.9, G2.5 ,G3.8 ,P3.7 |
| Working Voltage |
DC+9.0V¡À15% |
| working current |
100mA |
| Storage Temperature |
-30¡æ~+70¡æ |
| Operating Temperature |
-10¡æ~+40¡æ |

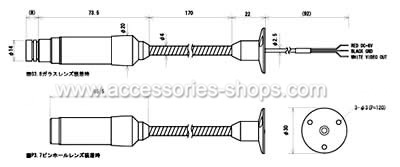

| outside dimensions |
§¶20¡Á68(G3.8)
§¶20¡Á68(P3.7)
+170(Arm)+Stand |
| Weight |
67g |
|
