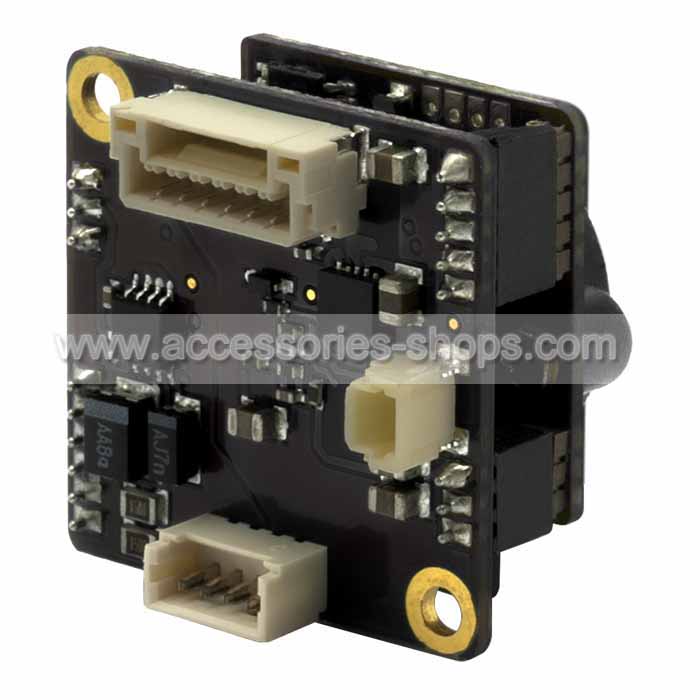

Watec WAT-1100MBD P3.3 Miniature Day/Night Board Camera 1/3-inch 750TVL High Sensitivity Low Light Camera

WAT-1100MBD P3.3

The WAT-1100MBD P3.3 is an ultra-miniature high-resolution day/night camera designed for maximum adaptability and low-light performance. It uses a 1/3.2" BSI CMOS sensor with 1280×960 effective pixels and supports 750TVL horizontal resolution. The camera features mechanical-less ICR for day/night switching, 2D noise reduction, wide dynamic range, and advanced image adjustments via OSD.

Its compact 23×23×34mm form factor makes it ideal for integration into UAVs, security systems, inspection setups, and covert surveillance installations. High sensitivity (0.005 lx at F1.8, AGC 54dB) ensures excellent imaging even in near-dark conditions.

Features:
* 1/3.2" BSI CMOS image sensor, 1280×960 pixels
* 750TVL horizontal resolution
* Ultra-compact 23×23×34mm form factor
* High sensitivity: 0.005 lx F1.8 (AGC 54dB)
* Mechanical-less ICR day/night function
* 2DNR (level adjustable)
* Wide dynamic range (WDR) and ATR adjustable
* OSD controlled via optional remote controller
* Multiple AE modes: 1/60–1/100,000 sec
* DC iris lens, standard 3.3mm F2.4 M12 lens
* Privacy masks: 16 zones
* Mirror image options: Off, V-Flip, H-Flip, HV-Flip
* Defog: Off / Auto (correction level selectable)
* Power: DC 5–12V, Max 0.72W
* Operating temperature: -10°C to +50°C, storage -30°C to +70°C
* Weight: 8G

Applications:
* Security & Surveillance
* Low-Light & Low-Visibility Imaging
* Inspection & Industrial Monitoring
* UAV / POV Systems

Specifications:

Pick-up element	1/3.2 inch BSI CMOS image sensor
Number of effective pixels	1280(H) × 960(V)
Unit cell size	3.5μm(H)×3.5μm(V)
Imaging system	RGB+W array mosaic filters on chip
Synchronizing system	Internal
Scanning system	Progressive
Video output	Composite: 1.0 V(p-p) 75Ω (Unbalanced)
Resolution (H)	More than 750TVL (Center)
Minimum illumination	0.005 lx F1.8 (AGC=54dB)
S/N	More than 55dB (AGC=OFF、γ=1.0)
Function settings	OSD (On Screen Display) operated by remote controller
AE mode	Fixed: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/20000, 1/50000, 1/100000 sec EI: 1/60 - 1/100000 sec.
White balance	ATW, PUSH, USER1, USER2, MANUAL, PUSH LOCK
AGC	0 - 54dB
MGC	MIN, 6, 12, 18, 24, 30, 36, 42, 48, MAX dB
Day / Night	ICR mechaless Day/Night
Gamma characteristics	γ≒0.45
Noise reduction	2DNR ON (Level adjustable)
Wide dynamic range	Mutiple exposure WDR: ON (Level selectable) / OFF ATR : ON (Level selectable) / OFF
Lens Iris	DC
Back Light Compensation	OFF / BLC / HLC
Defog	OFF / AUTO (Correction level selectable)
Privacy Mask	16masks
Mirror Image	OFF / V-FLIP / H-FRIP / HV-FLIP
Sharpness	0 - 255 (SHARPNESS)
Power Supply	DC+5V - 12V
Power Consumption	0.72W (60mA) ※12V
Operating Temperature	-10 - +50℃
Storage Temperature	-30 - +70℃
Operating / Storage humidity	95% RH or less (Without condensation)
Lens Mount	M12 P=0.5
Standard Lens	3324B-12P (A) (f3.3 F2.4)
Weight	Approx. 8g
Accessories	4P cable, 2P cable
