Watec W-03CDB3 1/3 Multi-function Color Board Camera With CS Lens Mount
Watec W-03CDB3 board camera Features:
* 1/3-inchi CCD sensor with high sensitivity 0.005 lx F1.2 and a resolution of 650TVL
* Advanced setting available by OSD (On-Screen Display) through an optional controller
* 2DNR, privacy masking, BLC (Back Light Compensation)
* Mirror image, white blemish correction, contour correction
* Manual iris lens, video drive iris lens and DC drive Iris lens compatible
Watec W-03CDB3 board camera Specifications:
| Model |
WAT-03CDB3(NTSC) |
WAT-03CDB3(PAL) |
| Image Sensor |
1/3" inch interline transfer CCD image sensor |
| total pixels |
1020(H)*508(V) |
1020(H)*595(V) |
| Effective Pixels |
976(H)*494(V) |
976(H)*582(V) |
| Pixel Size |
5.40um(H)*7.40um(V) |
5.00um(H)*6.25um(V) |
| imaging system |
Ye, Cy, Mg, and G complementary color mosaic filters on chip |
| Synchronization mode |
internal |
| Scanning system |
2:1 interlace |
| video output |
Composite video, 1.0 V(p-p), 75¦¸ (Unbalanced) |
| resolution ratio(H) |
More than 650 TVL(Center) |
| minimum illumination |
0.005lx. F1.2 |
| S/N |
More than 52dB |
| Function settings |
OSD(On Screen Display) operated by optional remote controller |
| AE Mode |
Fixed |
1/60-1/100 sec. |
1/50-1/120 sec. |
| 1/250,1/500,1/1000,1/2000,1/4000,1/10000 sec. |
| EI |
1/60-1/100000 sec. |
1/50-1/100000 sec. |
| White balance |
ATW, PUSH, USER1, USER2, ANTI CR, MANUAL, PUSH LOCK |
| AGC |
ON |
-3-45dB |
| OFF |
-3dB |
| Noise reduction |
2DNR ON / OFF |
| MGC |
8 steps (Selectable) |
| Gamma Features : |
¦Ã¨P0.45 |
| lens iris |
Video /DC |
| Back light compensation |
OFF / BLC / HLC |
| White blemish correction |
Max 64 dots |
| Defog |
OFF / LO / MID/ HIGH |
| Privacy mask |
8 masks |
| Mirror image |
ON (H-FLIP) / OFF |
| Video level |
0 - 255 (BRIGHTNESS) |
| Output switching |
AUTO / COLOR / BW |
| Sharpness |
0 - 255 (SHARPNESS) |
| |
|
| Power voltage |
DC + 12V¡À10% |
| power consumption |
0.78W(65mA) |
| Operating Temperature |
-10 - +50¡æ |
| Storage Temperature |
-30 - +70¡æ |
| Operating / Storage humidity |
95% RH or less (Without condensation) |
| Lens Mount |
CS mount |
| Weight |
Approx. 29G |

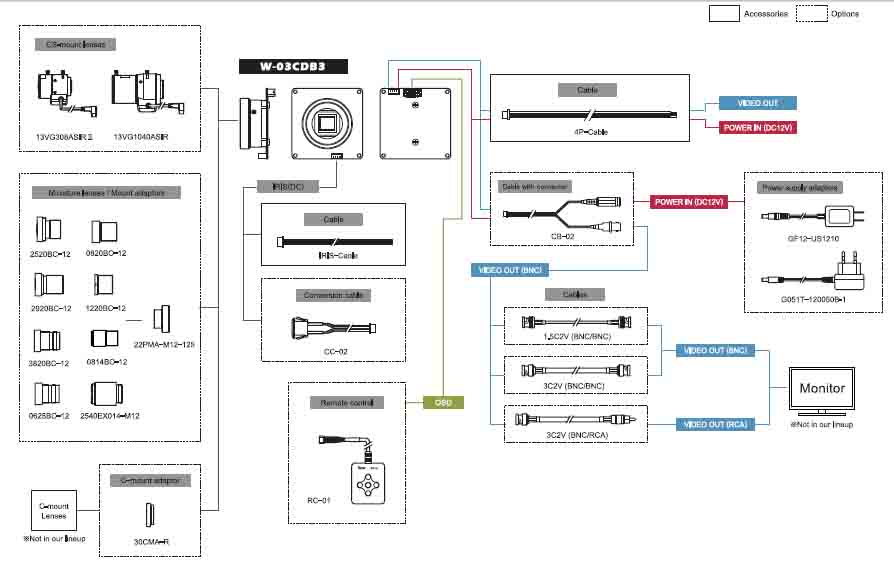

| Accessories |
4P cable, Hex. wrench |
|
