SONY XCG-CG510C Industrial Camera 5.1MP Global Shutter CMOS 2/3-type GigE Vision with POE Color Camera


SONY XCG-CG510C Industrial Camera 5.1MP Global Shutter CMOS 2/3-type GigE Vision with POE Color Camera

The Sony XCG-CG510C is a 5.1MP industrial camera featuring a Global Shutter CMOS sensor (IMX264) for high-quality imaging in dynamic environments. With GigE Vision 2.0 and Power over Ethernet (PoE) support, it offers fast data transfer and simplified installation. The camera delivers up to 23 fps at full resolution, with advanced features like defect pixel correction, shading correction, and IEEE1588 compliance for precise synchronization. Ideal for demanding industrial and machine vision applications, including automated inspection, robotic vision, and quality control.
Equipped with GigE Vision 1.2 / 2.0 support, the XCG-CG510C offers high-speed data transfer via Gigabit Ethernet while also featuring Power over Ethernet (PoE) for simplified installation and operational efficiency. With advanced features like defect pixel correction, shading correction, and trigger modes, it ensures consistent, high-quality images.
The XCG-CG510C is ideal for applications like automated inspection systems, robotic vision, quality control, and machine vision for automation, where both resolution and speed are critical. Compact and versatile, this camera is perfect for integration into a wide range of industrial settings.

Features:
* 5.1MP Resolution (2464 x 2048)
* Global Shutter CMOS (Color)
* GigE Vision 1.2 / 2.0 with PoE
* 23fps Frame Rate
* Advanced Image Processing (Shading & Defect Pixel Correction)
* IEEE1588 Compliant
* Area Gain and LUT for Optimal Imaging
* Trigger Mode and Single ROI
* Compact and Rugged Design

Image Sensor 2/3-type CMOS Image sensors with a global shutter function (PREGIUS)
Number of Effective Pixels (H x V) 2,464 ¡Á 2,056
Cell Size (H x V) 3.45 ¦Ìm ¡Á 3.45 ¦Ìm
Standard Output Pixels (H x V) 2,448 ¡Á 2,048
Frame Rate 23 fps (8 bit, Mono/Raw)
Minimum Illumination 010 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/23 s)
Sensitivity F8 (2000 lx, Gain: 0 dB, Shutter: 1/23 s)
SNR More than 50 dB (Lens close, Gain: 0 dB, 8 bit)
Gain Auto, Manual: 0 dB to 18 dB
Shutter Speed Auto, Manual: 60 to 1/100,000 s
White Balance Manual, One Push, Auto
Camera Features Readout Modes (Normal, Partial scan), Test pattern
Synchronization Hardware trigger, Software trigger, PTP (IEEE1588)
Trigger Modes Edge detection, Pulse width detection, Bulk trigger, Sequential trigger
User Set 16
User Memory 64 kbytes + 64 bytes ¡Á 16 channels
Other Features Shading correction, Defect correction, Temperature readout, Noise filter, LUT, Area gain
Video Data Output Digital Mono8, 10, 12 bit (default setting 8 bit)
Digital Interface Gigabit Ethernet (100BASE-TX / 1000BASE-T)
Camera Specification GigE Vision® Version 2.0/1.2

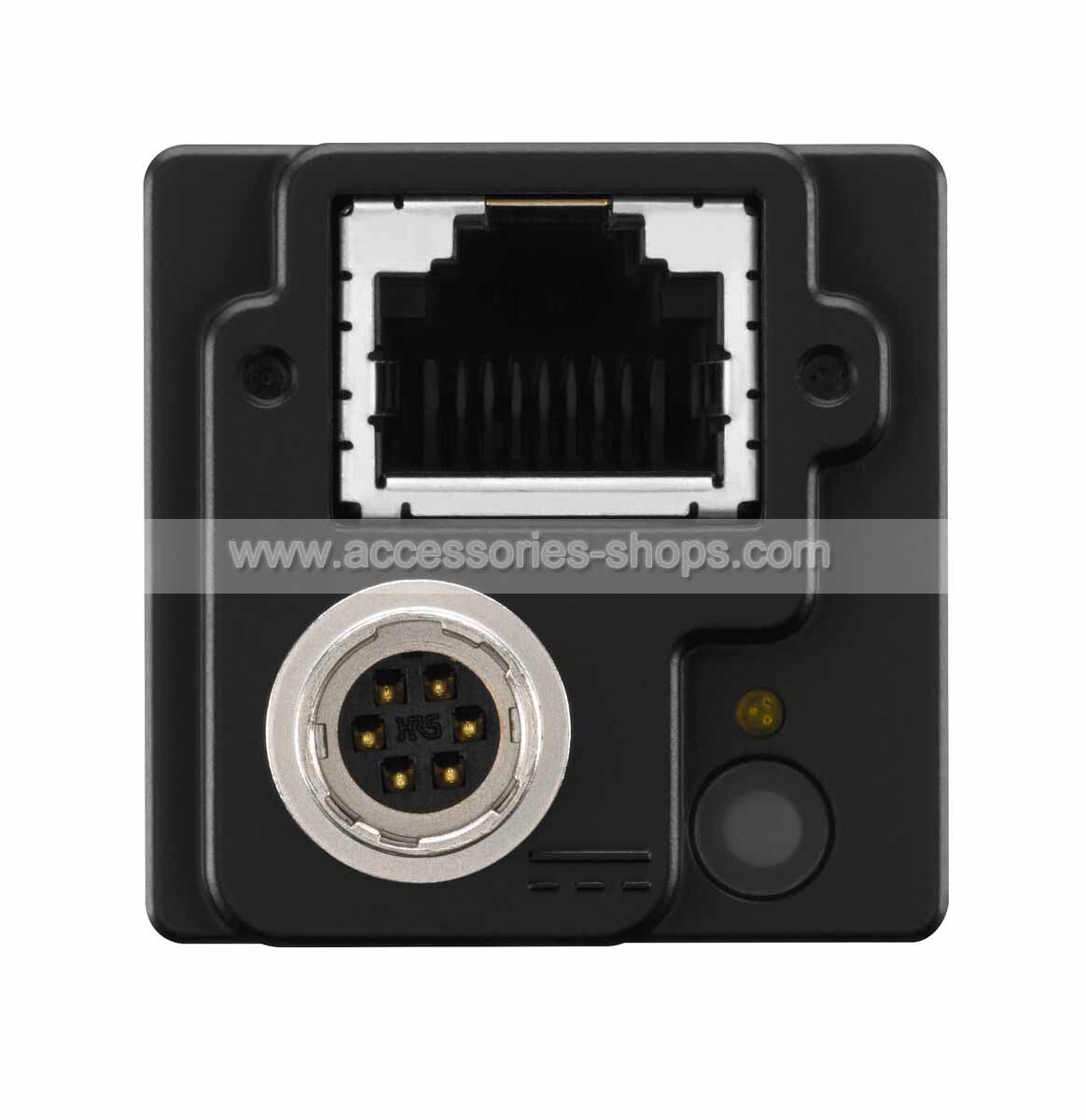

Digital I/O ISO IN (x1), TTL IN/OUT (x2, selectable)
Lens Mount C mount
Flange Back 17.526 mm
Power Requirements DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V)
Power Consumption DC +12 V 3.0 W (max.), IEEE802.3af 3.7 W (max.)
Operating Temperature ¨C5 ¡ãC to +45 ¡ãC (23 ¡ãF to 113 ¡ãF)
Performance Guarantee Temperature 0 ¡ãC to 40 ¡ãC (32 ¡ãF to 104 ¡ãF)
Storage Temperature ¨C30 ¡ãC to +60 ¡ãC (¨C22 ¡ãF to +140 ¡ãF)
Operating Humidity 20% to 80% (no condensation)
Storage Humidity 20% to 95% (no condensation)
Vibration Resistance 10 G (20 Hz to 200 Hz)
Shock Resistance 70 G

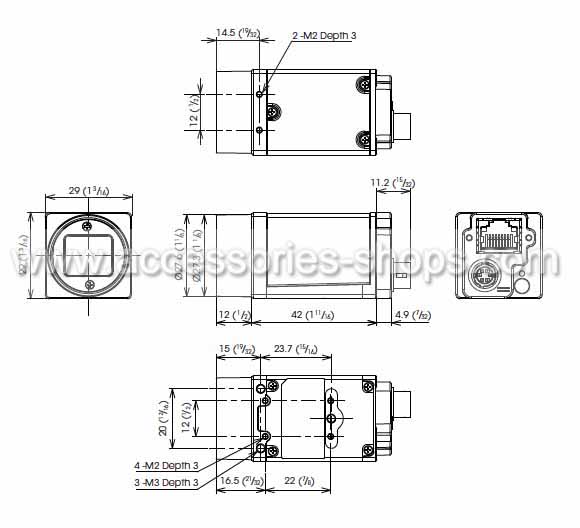

Dimensions (W x H x D) 29 ¡Á 29 ¡Á 42 mm (1 3/16 ¡Á 1 3/16 ¡Á 1 11/16 inches) (excluding protrusions)
Mass Approx. 65 g (2.3 oz)
Regulations UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3
Supplied Accessories Lens mount cap (1), Operating Instructions (1)
Applications:
* Automated Quality Control and Inspection
* Robotic Vision Systems
* Manufacturing Automation
* High-Speed Object Tracking
* 3D Scanning and Imaging
* Precision Measurement Systems
* Defect Detection
* Sorting and Packaging Automation
