SONY XCG-CG40 Global Shutter 1/2.9-inch CMOS Pregius SONY IMX287 Pregius Sensor 0.4MP GigE Vision with POE Camera


SONY XCG-CG40 Global Shutter 1/2.9-inch CMOS Pregius SONY IMX287 Pregius Sensor 0.4MP GigE Vision with POE Camera

The Sony XCG-CG40 is a 0.4MP GigE Vision camera featuring the IMX287 Pregius global shutter CMOS sensor, delivering 300 fps for high-speed, precise imaging. Compact and PoE-enabled, it supports advanced features like area gain, defect correction, LUT adjustments, and IEEE1588 for synchronized applications, making it ideal for demanding industrial and machine vision tasks.
Measuring 29 mm x 29 mm x 42 mm and weighing only 65 grams, the XCG-CG40 fits seamlessly into space-limited setups and is an excellent replacement for CCD-equipped cameras. It inherits the mounting dimensions of Sony's XCG-C series, making it highly compatible with existing systems. Power over Ethernet (PoE) and compliance with the GigE Vision 2.0 standard allow for simplified setup and integration. Advanced features like area gain, defect correction, Look Up Table (LUT) adjustments, and a 3 x 3 filter further enhance imaging flexibility and quality.

Features:
* Compact design: 29 mm x 29 mm x 42 mm
* 0.4MP resolution with Sony IMX287 Pregius sensor
* Global shutter CMOS for blur-free imaging
* 300 fps frame rate for high-speed imaging
* GigE Vision 2.0 with IEEE1588 support
* Power over Ethernet (PoE) for easy setup
* Area gain, defect correction, and LUT adjustment
* Temperature readout and 3 x 3 filter for optimized image quality

Specifications:
Image Sensor IMX287: 1/2.9-type Global Shutter CMOS Sensor (Pregius)
Number of Effective Pixels (H x V) 728 ¡Á 544
Cell Size (H x V) 6.90 ¦Ìm ¡Á 6.90¦Ìm
Standard Output Pixels (H x V) 720 x 540
Frame Rate 300 fps (8bit, Mono/Raw)
Minimum Illumination 0.5 lx (Iris: F1.4, Gain: +18dB, Shutter: 1/100 s)
Sensitivity F11 (400 lx, Gain: 0 dB, Shutter: 1/30 s)
SNR More than 50 dB (Lens close, Gain: 0 dB, 8 bit)
Gain Auto, Manual: 0 dB to 18 dB
Shutter Speed Auto, Manual: 60 to 1/100,000 s
Camera Features Readout Modes Normal, Partial scan
Synchronization Hardware trigger, Software trigger, PTP (IEEE1588)
Trigger Modes OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger  (Burst trigger, Bulk trigger*, Sequential trigger*, Free set sequence*)  *Except XCG-CG40
User Set 16
User Memory 64 kbytes + 64 bytes ¡Á 16 channels
Partial Scan W (Pixel) 8 to 728
H (Line) 8 to 544
GPO EXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (Output switching)
Other Features Area gain, Defect correction, Shading correction*, Temperature readout, LUT, 3 x 3 filter  *Except XCG-CG40
Video Data Output digital Mono  8, 10, 12 bit ( at the time of shipment 8 bit)
Digital Interface Gigabit Ethernet (100BASE-TX / 1000BASE-T)
Camera Specification GigE Vision® Version 2.0/1.2
Digital I/O ISO IN (x1), TTL IN/OUT (x2, selectable)
Lens Mount C mount
Flange Back 17.526 mm
Power Requirements DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V)
Power Consumption DC +12 V 3.3 W (max.), IEEE802.3af 4.0 W (max.)
Operating Temperature ¨C5 ¡ãC to +45 ¡ãC (23 ¡ãF to 113 ¡ãF)
Performance Guarantee Temperature 0 ¡ãC to 40 ¡ãC (32 ¡ãF to 104 ¡ãF)
Storage Temperature ¨C30 ¡ãC to +60 ¡ãC (¨C22 ¡ãF to +140 ¡ãF)
Operating Humidity 20% to 80% (no condensation)
Storage Humidity 20% to 80% (no condensation)
Vibration Resistance 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z )
Shock Resistance 70 G

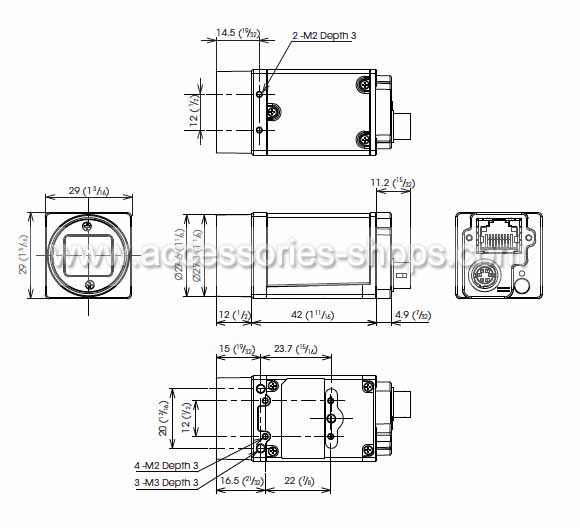

Dimensions (W x H x D) 29 ¡Á 29 ¡Á 42 mm (1 3/16 ¡Á 1 3/16 ¡Á 1 11/16 inches) (excluding protrusions)
Mass Approx. 65 g (2.3 oz)
MTBF 58,525 hours (Approx. 6.7 years)
Regulations UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3
Supplied Accessories Lens mount cap (1), Safety Regulations (1)

Applications:
* Automated optical inspections (AOI)
* Robotics and robotic vision
* Medical imaging systems
* High-speed sorting and production lines
* Quality control and defect detection
* Precision measurement
