SONY XCG-CG510 2/3-type IMX250 Sensor Global Shutter CMOS 5.1MP GigE Vision B/W Cameras


SONY XCG-CG510 2/3-type IMX250 Sensor Global Shutter CMOS 5.1MP GigE Vision B/W Cameras

The Sony XCG-CG510 camera integrates Sony's leading Pregius Global Shutter CMOS sensor technology with a compact design, perfect for industrial and machine vision applications. Equipped with the IMX264 5.1MP sensor, the camera provides exceptional image quality with a resolution of 2464 (H) x 2048 (V), making it ideal for high-precision tasks that require accurate motion capture and image analysis.
With a frame rate of 23 fps and the ability to operate over GigE Vision 1.2/2.0 interfaces, the XCG-CG510 supports both PoE (Power over Ethernet) and IEEE1588 synchronization, simplifying system integration and minimizing cable clutter. It excels in low-light environments, thanks to Sony's Pregius high sensitivity technology, which ensures maximum visibility and reliable performance under challenging lighting conditions.

Features:
* 5.1MP IMX264 CMOS sensor for superior image quality
* Global Shutter technology eliminates motion blur
* 23 fps frame rate for smooth image capture
* GigE Vision 2.0/1.2 support for easy integration
* Power over Ethernet (PoE) reduces wiring complexity
* IEEE1588 compliance for precise synchronization
* Advanced image processing: Defect Pixel Correction, Shading Correction
* Trigger Mode for external event synchronization
* Compact cubic design fits in tight industrial spaces

Specifications:
B/W / Color B/W
Image Size 5.1 MP
Image Sensor IMX250 (Polarization image sensor) 2/3-type CMOS with a global shutter function (Pregius)
Number of Effective Pixels (H x V) 2,464 ¡Á 2,056
Cell Size (H x V) 3.45 ¦Ìm ¡Á 3.45 ¦Ìm
Standard Output Pixels (H x V) 2,448 ¡Á 2,048
Frame Rate 23 fps (8 bit, Mono/Raw)
Minimum Illumination 1.5 lx (iris: F1.4, Gain: +18 dB, Shutter: 1/23 s)
Sensitivity F4 (400 lx, Gain: 0 dB, Shutter: 1/23 s)
SNR More than 50 dB (Lens close, Gain: 0 dB, 8 bit)
Gain Auto, Manual: 0 dB to 18 dB
Shutter Speed Auto, Manual: 60 to 1/100,000 s
Camera Features Readout Modes (Normal, Partial scan), Test pattern
Synchronization Hardware trigger, Software trigger, PTP (IEEE1588)
Trigger Modes OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst trigger, Bulk trigger, Sequential trigger, Free set sequence)
User Set 16
User Memory 64 kbytes + 64 bytes ¡Á 16 channels
Partial Scan W (Pixel): 16 to 2,464; H (Line): 16 to 2,056
GPO EXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (selectable)
Other Features Area gain, Defect correction, Shading correction, Temperature readout
Interface Gigabit Ethernet (1000BASE-T/100BASE-TX)
Video Data Output Digital Mono8, 10, 12 bit (default setting 8 bit)
Camera Specification GigE Vision® Version 2.0/1.2
Digital I/O ISO IN (x1), TTL IN/OUT (x2, selectable)
Lens Mount C mount
Flange Back 17.526 mm
Power Requirements DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V)
Power Consumption DC +12 V 3.3 W (max.), IEEE802.3af 3.7 W (max.)
Operating Temperature ¨C5 ¡ãC to +45 ¡ãC (23 ¡ãF to 113 ¡ãF)
Performance Guarantee Temperature 0 ¡ãC to 40 ¡ãC (32 ¡ãF to 104 ¡ãF)
Storage Temperature ¨C30 ¡ãC to +60 ¡ãC (¨C22 ¡ãF to +140 ¡ãF)
Operating Humidity 20% to 80% (no condensation)
Storage Humidity 20% to 80% (no condensation)
Vibration Resistance 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z)
Shock Resistance 70 G

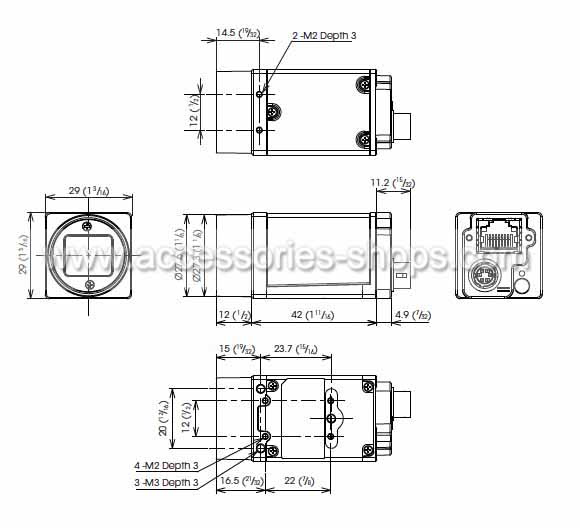

Dimensions (W x H x D) 29 ¡Á 29 ¡Á 42 mm (1 3/16 ¡Á 1 3/16 ¡Á 1 11/16 inches) (excluding protrusions)
Mass Approx. 65 g (2 oz)
MTBF 62,042 hours (Approx. 7.1 years)
Regulations UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3
Supplied Accessories Lens mount cap (1), Safety Regulations (1)

Applications:
* Assembly Line Inspection
* Robotic Vision Systems
* Quality Control
* Packaging Verification
* 3D Vision
* Transportation
