| MODEL NO. |
MTV-54G10N |
MTV-54G10P |
| TVSYSTEM |
NTSC |
PAL |
| IMAGESENSOR |
1/4-inch CCD Image Sensor |
| CCDTOTAL PIXELS |
~ 270K |
~ 320K |
| SCANNING SYSTEM |
525 lines, 60fields/sec |
625 lines, 50 fields/sec |
| SYNCSYSTEM |
Internal / VD-Lock |
| MINIMUM ILLUMINATION |
Legacymode |
1.5 Lux ( F1.8, 5600ºK) |
| Star light Mode |
0.03 Lux ( F1.8, 5600ºK ) |
| RESOLUTION |
380TVL |
| S / N RATIO |
46dB ( MIN ) / 50dB ( TYP ) (AGC OFF£¬r=1£¬APC OFF£¬Y-OUT) |
| WHITE BALANCE |
Mode |
ATW / AWC / FIX ( Zero color rolling) |
| Range |
3200 ~ 9600 ºK |
| B.L.C. FUNCTION |
Super BLC,48 zone BLC |
| GAMMA CORRECTION |
0.45 /1 |
| AGC |
AUTO (18dB max) |
| ALC |
AUTO / FIX |
| IMAGE NEGATIVE |
Select by OSD menu |
| CROSS LINE |
ON/OFF Select by OSD menu (position adj. by software) |
| FREEZE FUNCTION |
Alarm in trigger or Select by OSD |
| ELECTRONIC SHUTTER |
AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step |
| LENS |
10X optical ZOOM LENS£¬F1.8~2.9£¬f=4.2~42.0mm |
| Diagonal |
W(56.4º) / T(6.1º) |
| Hor. |
W(46.4º) / T(4.9º) |
| Ver. |
W(35.6º) / T(3.7º) |
| ZOOM |
100X (10X optical 10X Digital) |
| FOCUS |
Auto / Manual |
| POSITION |
64 Position (Zoom£¬Focus) |
| VIDEO OUTPUT |
Composite & Y/C output 1.0Vp-p at 75 ohm |
| CONTROL FUNCTION |
Dry Switch , RS-232C/RS-485(Drive option) , OSD control |
| COMMUNICATION BAUD RATE |
9600 BPS |
| OPERATION TEMPERATURE |
-10”ęTO 50”ę |
| OPERATIONAL HUMIDITY |
within 85%RH |
| POWER SUPPLY |
DC12V”Ą1V / 3.6W(Max) |

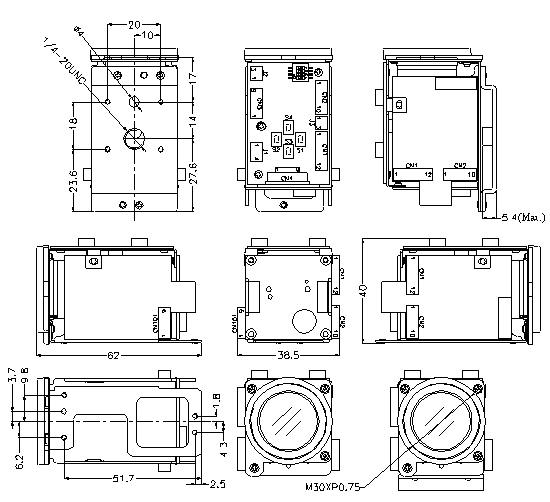

| DIMENSIONS |
62 mm (L) X 38.5 mm (W) X 40 mm (H) |
