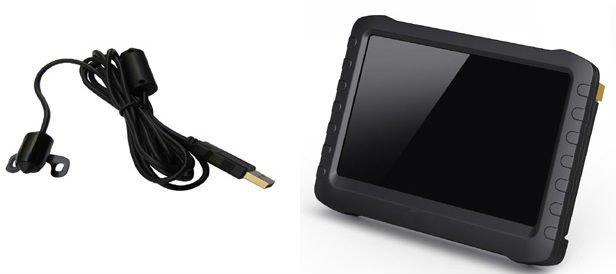

USB 0.008Lux 520TVL Mini Camera And 2.4GHz 5inch Wireless CCTV Camera DVR Monitor Receiver


USB 0.008Lux 520TVL Mini Camera And 2.4GHz 5inch Wireless CCTV Camera DVR Monitor Receiver


USB 2.4GHz bullet spy camera module,5-inch screen monitor ;800X600pix;motion detect


Condition:New
Model:SPYTE80H
Warranty 1 yera !



Usage:

Plug and play !

Just plug it to USB port of AC adapter,computer,camera starts to work. And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.

USB 0.008Lux 2.4GHz 520TVL Mini Camera And 5inch Wireless CCTV Camera DVR Monitor Receiver
USB 0.008Lux 2.4GHz 520TVL Mini Camera And 5inch Wireless CCTV Camera DVR Monitor Receiver

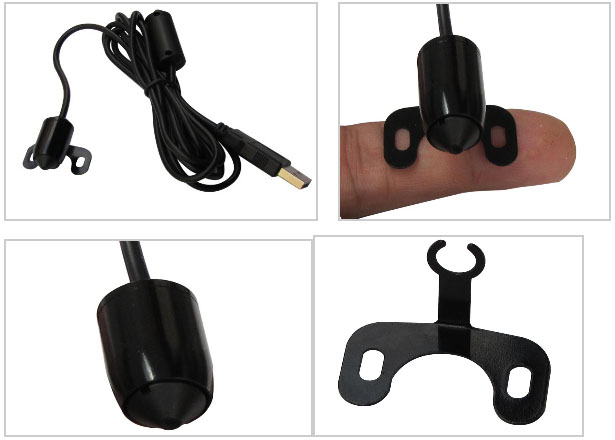

2.4GHz Mini Camera Main Features:

1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;
2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play.
3. High resolution(786X576pix;520TVL), high sensitivity, high SNR;
4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function;
5. Wide view angle(90 degree);
6. Strong output power brings long transmission range up to 150m(L.O.S.)
7. Convenient power supply and continuous working.
8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well.

Specification:

Frequency 2.4G 2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4) Working channel:1 of 8
2.3G 2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4)
Audio Subcarrier Frequency 6.0Mhz
Antenna 2.4GHz built-in antenna
RF Output Power 100mW
Transmission Range 150 meters
Total Pixels NTSC:656(H)492(V) PAL:786(H)576(V)
Horizontal Resolution 520TV Lines
Minimum Illumination 0.008Lux/F1.2
Lens & View angle 90
S/N Ratio 48dB
Size (L) 1.8m {lens size (L x D)27mm X 15mm }
Net Weightg 50g
Current 160mA
Voltage DC 5V
Operation Temperature - 20C ~ + 50C Relative Humidity:85



USB 0.008Lux 2.4GHz 520TVL Mini Camera And 5inch Wireless CCTV Camera DVR Monitor Receiver
USB 0.008Lux 2.4GHz 520TVL Mini Camera And 5inch Wireless CCTV Camera DVR Monitor Receiver

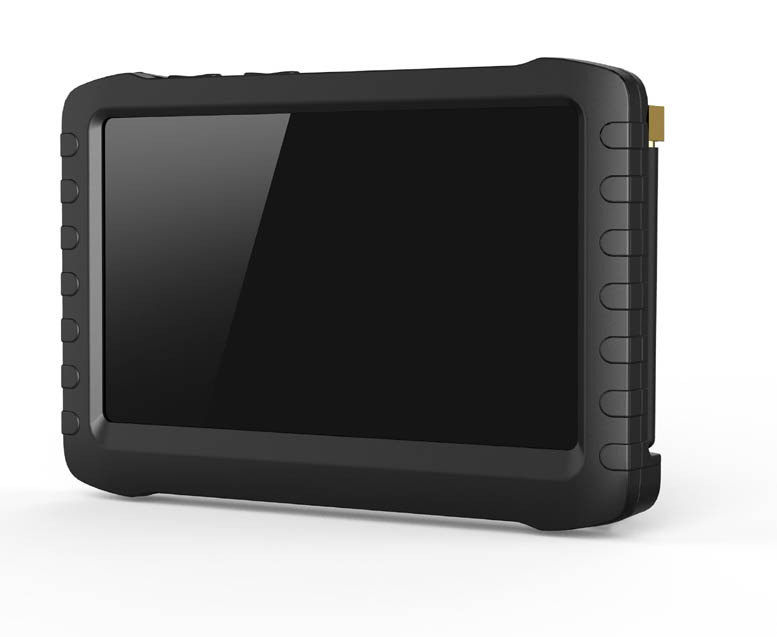

HD 2.4GHz wireless mini DVR :

*  5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design;
*  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
*  Supports storage up to 32G TF card, which records up to 32 hours;
*  Supports  2.4GHz & 5.8GHz  wireless frequency;
*  8 channels auto/manual switch;
*  Folding hidden external antenna assures excellent wireless receiving;
*  Supports AV IN function: receiving signal from wired cameras;
*  Photo function: it can take, review & store pictures;
*  Supports intelligent motion detect video recording;
*  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;
*  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;
*  Support power-saving mode: automatic shutdown, automatic off-screen;
*   Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
*  It's of high compatibility, which supports almost all computer operating system, including MAC;
*   Supports multi-language.

HD 2.4GHz wireless mini DVR Specifications:

Items Value
Wireless Receiving 2.4GHz C8 channels CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
Sensitivity -92dB
Receiving distance 100 meters
AV IN TV system NTSC / PAL
Output voltage 3.6-4.2 V
HD 5-inch LCD screen Active area 108mm(W) X 64.8mm(H)
Resolution 800 X 480 Pixel
Luminance for LCM 200 cd/O
Cape clear 5-inch LCD screen Active area 118mm(W) X 62.8mm(H)
Resolution 480 X 272 Pixel
Luminance for LCM 300cd/O
Video Resolution 720*576 / 640*480
Video compress MPEG-AVI 30fps
Play format MPEG-AVI
Audio Frequency 20HZ-20KHz stereo
Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume)
Speaker 1W
Photo Format JPG/JPEG
Storage External SD card TF card 1GB-32GB(optional)
32GB recording time 10-32 hours
1GB photos 15625pcs
Operating system PC Windows & Mac OS
Port USB 2.0
Language Multiple
Power Voltage DC 5V
Current(receiving mode) 660MA
Current( recording mode) 680MA
Current(recording with off-screen mode) 340MA
AC adapter DC 5V 2A
Built-in battery Li-battery 3200mAh
Standby time Wireless record 9.5 hours(off-screen); 5hours(on-screen)
Wired record 12 hous(off-screen); 6hours(on-screen) *LED camera not included.
Size (L x W x H) 131mm x 86mm x 18mm
Weight(g) 205g



USB 0.008Lux 2.4GHz 520TVL Mini Camera And 5inch Wireless CCTV Camera DVR Monitor Receiver


USB 0.008Lux 2.4GHz 520TVL Mini Camera And 5inch Wireless CCTV Camera DVR Monitor Receiver

Package:

1 * Wireless DVR
1 * Mini Camera
1 * Power adapter
1 * USB line
1 * Install back clip
1 * specification
