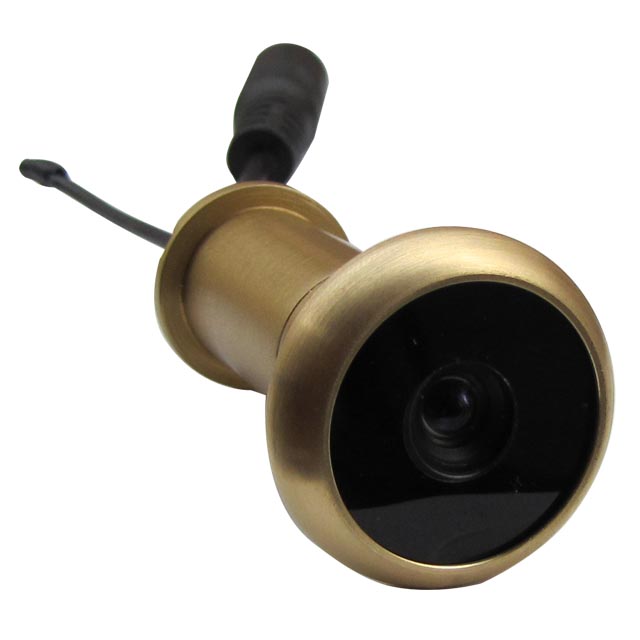

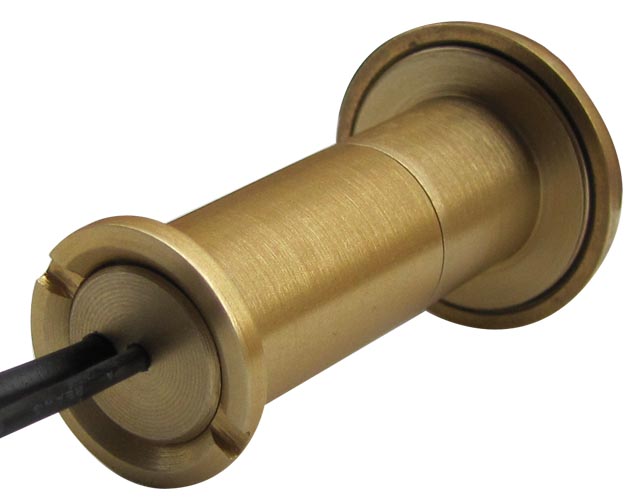

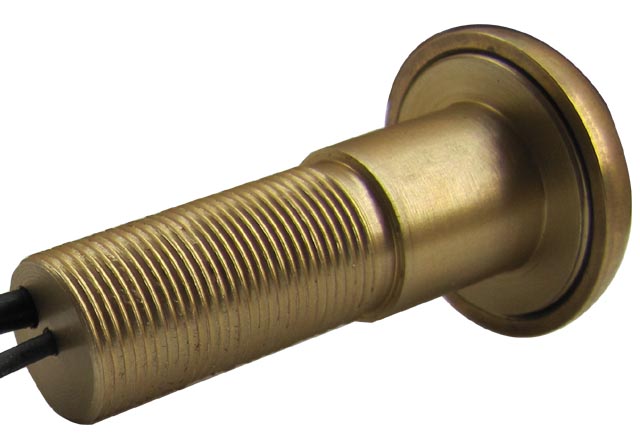

90deg 100m Range 5.8G Wireless Door Peephole Camera


90deg 100m Range 5.8G Wireless Door Peephole Camera


Pure brass material;13.8mm diameter;90 degree VOA;0.008lux;720X480pix;100m range


Codnition:New
Model:SPY520T50



Wireless peephole camera adopts no-interference 5.8G frequency, which transmits 100 meters range.Moreover, it uses the high sensitive imaging device and pure brass material, which brings noble and durable quality and superior imaging capabilities.Extremely low illumination(0.008lux), broad view angle(90deg)Ł¬continuous working(AV power supply),  and easy installation(no need to drill hole or set cable) . ItˇŻs a good helper for home monitoring and burglar.

Features:

1. No-interference 5.8G frequency, up to 24 channels for choice.
2.100 meters wireless transmission range;
3. Noble and durable pure brass material;
4. Same size with original optical peephole. Keep original appearance after installation;
5. 0.008LUX super low illumination, which can see visitor clearly under dim light;
6. 90deg wide view angle;

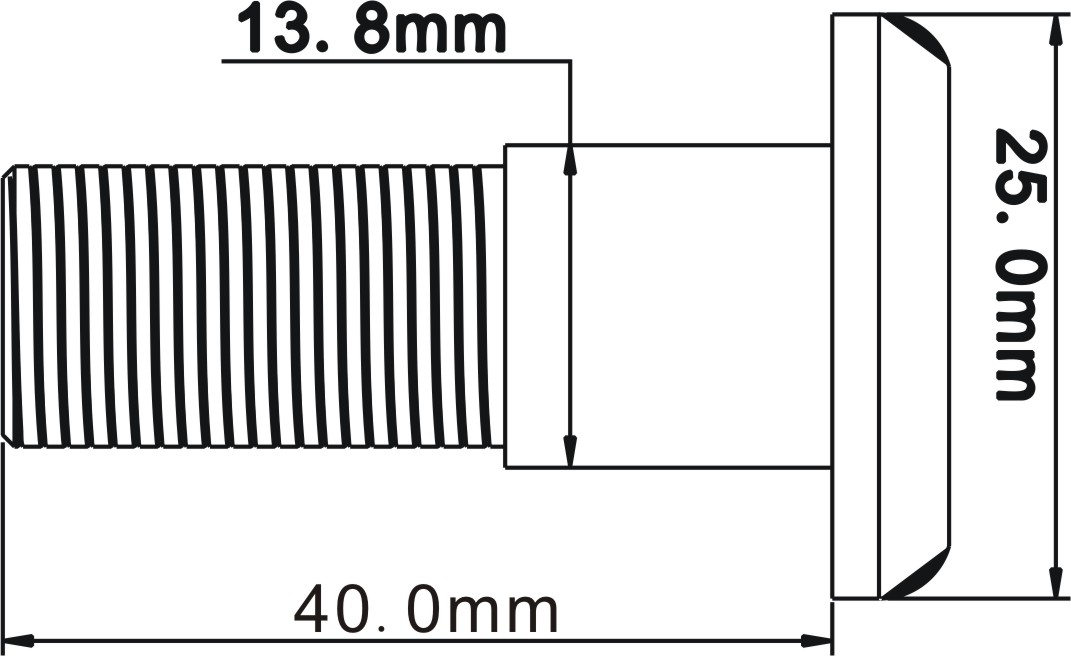

7. 13.8mm small diameter, which is suitable to all doors with peephole. No need to drill hole, just install directly;
8. Low power consumption assures the long time working life;
9. Easy  operation: just plug and play!

Installation:

1.  Use one coin or other tool to uninstall the original optical peephole viewer;
2.  Unscrew copper sleeve off and pass lens cable through peephole from outside to inside of door. Set lens cable into sleeve; screw sleeve into peephole inside of door. (Pay attention to horizontal direction of lens);
3. Plug adapter of camera into socket, it starts to work.  Then power on wireless monitor/DVR, and set it in the same channel as the one of camera. It begins to monitor.

90deg 100m Range 5.8G Wireless Door Peephole Camera
90deg 100m Range 5.8G Wireless Door Peephole Camera

Specification:



Working frequency G1-within 5.8G CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz Working Channel: 1 of 24
G2-Beyond 5.8G CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
G3-Within 5.8G CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna External antenna
RF OUTPUT POWER 25mW
TRANSMISSION RANGE 100 meters
SENSOR DIMENSION NTSC: 720(H)ˇÁ480(V) PAL: 720(H)ˇÁ576(V)
HORIZONTAL RESOLUTION 480TV Lines
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F1.2 / 90 ˇă

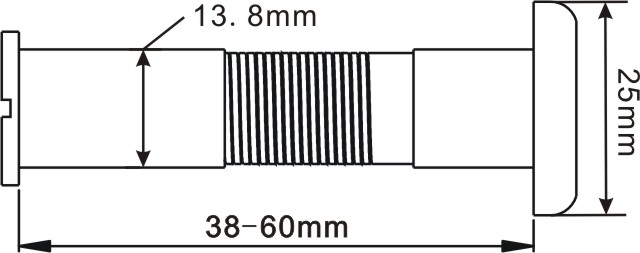

PEEPHOLE SIZE(L x D) 38-60mm X 14mm
WEIGHT(g) 20g
WORK CURRENT 230mA
POWER REQUIREMENT DC 4V
OPERATING TEMPERATURE - 20ˇăC ~ + 50ˇăC Ł¬Relative humidity 85©‡

90deg 100m Range 5.8G Wireless Door Peephole Camera 90deg 100m Range 5.8G Wireless Door Peephole Camera
90deg 100m Range 5.8G Wireless Door Peephole Camera
