Brand new 0.0Lux 520TVL Mini SPY CCTV IR Camera (8 LEDs) Audio


Condition:New
Model:MSPY001LUX



Features & functions:

It¡¯s an ultra small  high definition CCTV camera with excellent night vision.
Size is 13*13mm only, Weight is 3g! Very easy to install and conceal.
Minimum illumination is 0.0lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.

Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)¡Á492(V) PAL:786(H)¡Á576(V)
IMAGE SIGNAL PROCESS Digital Signal Processing System
SENSOR DIMENSION 4.75mm(H)¡Á3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2:1 Interlace
SENSITIVITY 0.00Lux/2M (IR OPEN)
LENS & VIEW ANGLE 0.5mm F2.0 / 55 ¡ã
S/N RATIO 52dB
ELECTRONIC SHUTTER OUT (1/60 S TO 1/100000 S) OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
AUDIO OUT 1.0V p-p/1Kohm
SIZE 13mm*13mm
WEIGHT 3g
WORK CURRENT IR LED on 170mA
POWER REQUIREMENT DC 5.0V
OPERATING TEMPERATURE - 10¡ã C ~ +50¡ãC £¬less than 90% RH
Connection PIN1- Red DC5V PIN2- Black GND PIN3-Yellow VIDEO OUT PIN4- white AUDIO OUT

Contents:
Mini camera X1; RCA/BNC cableX1;AC adapter X1
Specification:

Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
5) CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

0.0Lux 520TVL Mini SPY CCTV IR Camera with 8 LEDs Audio 0.0Lux 520TVL Mini SPY CCTV IR Camera with 8 LEDs Audio 0.0Lux 520TVL Mini SPY CCTV IR Camera with 8 LEDs Audio

package:

* 1 Mini camera ;
* 1 AC Adapter

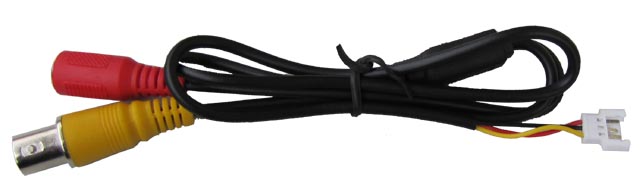

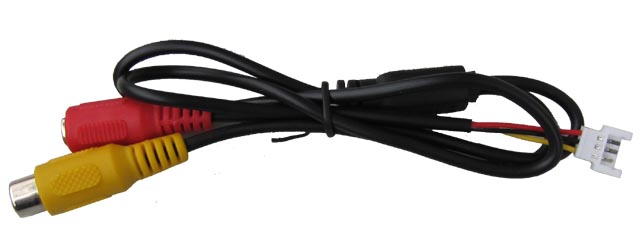

* 1 RCA/BNC cable (Only one cable, if no choice, we will ship at random)
