Portable 360 PAN Tilt Drain Inspection Camera Device with 100M Push Cable and Recording SD Card
4MP Sony sensor resolution,Viewing angle: 120¡ã,12LEDs,,39mm diameter camera with 2 sliders
This pipeline inspection camera is a professional sewer camera system designed for contractors and plumbers to work smarter, complete tasks faster, and provide a higher-resolution display to view pipes.
Its advanced sewer camera inspection system can be used to fulfill client obligations and is suitable for inspecting many industries, environments, and applications today, including residential plumbing, municipal collection systems, industrial pipelines, and other commercial applications.
Features:
* 360 PAN Tilt 4MP Drainage Camera System with Meter Counter and Built-in Keyboard
* 4MP Sony sensor resolution: 2560*1440px
* Viewing angle: 120¡ã
* Light source: 12 LEDs, brightness adjustable via monitor
* 39mm diameter camera with 2 sliders

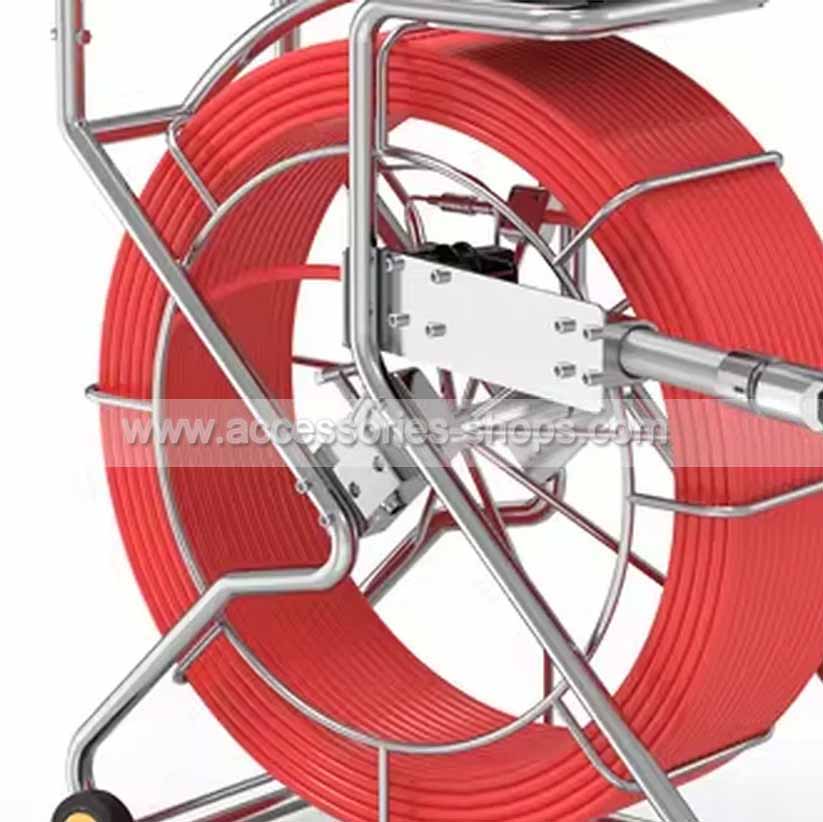

Cable Reel:
*Cable Reel Material: Stainless steel with brake and meter counter
*Cable Length: 100m, 11mm thick durable cable
*Monitor Bracket: Detachable from the cable reel
10.1inch touch screen monitor:
* Monitor bracket: Removeable from the cable reel
* 4colors removable Rubber Corner protectors
* 10.1 inch touch screen resolution:1280*800pix,IP66
* Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
* Video Output: HDMI 1080P
* Support 4K,2K recording;12MP photo and photo notes.
* Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
* Video compression format:H.264
* Max Storage: up to 256GB TF card,default 64GB
* Compressed video and audio are synchronous
* 6200mAh exchangeable and removable Li-battery
* Support 12 Voltage power output for camera
* WiFi Wireless transmission and view on mobile,via APP

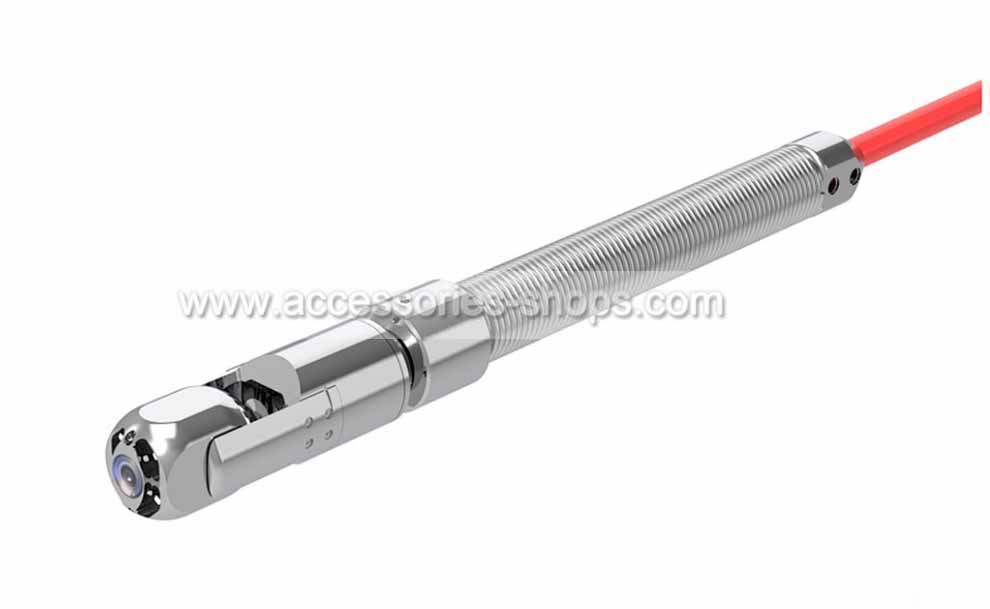

Camera
Effective resolution
4.0 Mega Pixel, 2560*1440px
Video output format
AHD
Video Frane Rate
PAL: 1080P@25FPS, NTSC:1080P@30fps
Camera Dimension
ø39mm
total length with spring: 133mm
Light source
12 LED
Camera Housing
316L stainless steel, sapphire glass
Lens View angle
120¡ã
Light source
12 LEDS
Brightness of the LEDS
Controllable via monitor
Cable
Length
100m(optional)
Material
Glass fiber cable
Diameter
11mm
Cable Reel
Size
L*W*H=42*42*20cm
Brake
With Brake
Recording Monitor
Display
10.1 inch
Screen Resolution
1280*800 px
Touch screen
capacitive touch
Video recording
2K(4:3): 2560x1944
2K(16:9): 2560x1440
Video input
AHD
Video format
MP4
12MP,8MP,4MP,2MP (JPG)
Video Output
HDMI 1080P
Compression mode
H. 264 video compression
Audio input/output
1.0Vp-p (20Hz-20KHz)
Speaker Output
1W
Camera LED Control
PWN
File System Support
FAT32
Memory card
TF card 2GB-256GB
Language
China, English, South Korea, Russia,
German, French, Ukrainianetc
Voltage
DC :12V USB DC:5V
WiFi Protocol
802.11 a/b
WiFi Channel
2.4000-2.4835Ghz
WiFi power
<16dBm
Power Supply
DC 12V 2.5A
Lithium battery capacity
6200mAh( 48Wh)
Maximum charging power
15W
working hours
6-8 Hours
Operating temperature
-20¡æ to 50¡æ
Waterproof grade
IP65
Size
L*W*H 30*19*1.8CM
Weight
870g
Package
Monitor with ABS plastic suitcase
Total size after packing:47*45.5*30cm, G.W:13KG
