Multifunctional Audio-Video Life Detector Life Detection Instrument

Wifi 4K Recording Monitor and 360 Pan Tilt Earthquake Life Search Detector with Different kinds of Cameras!

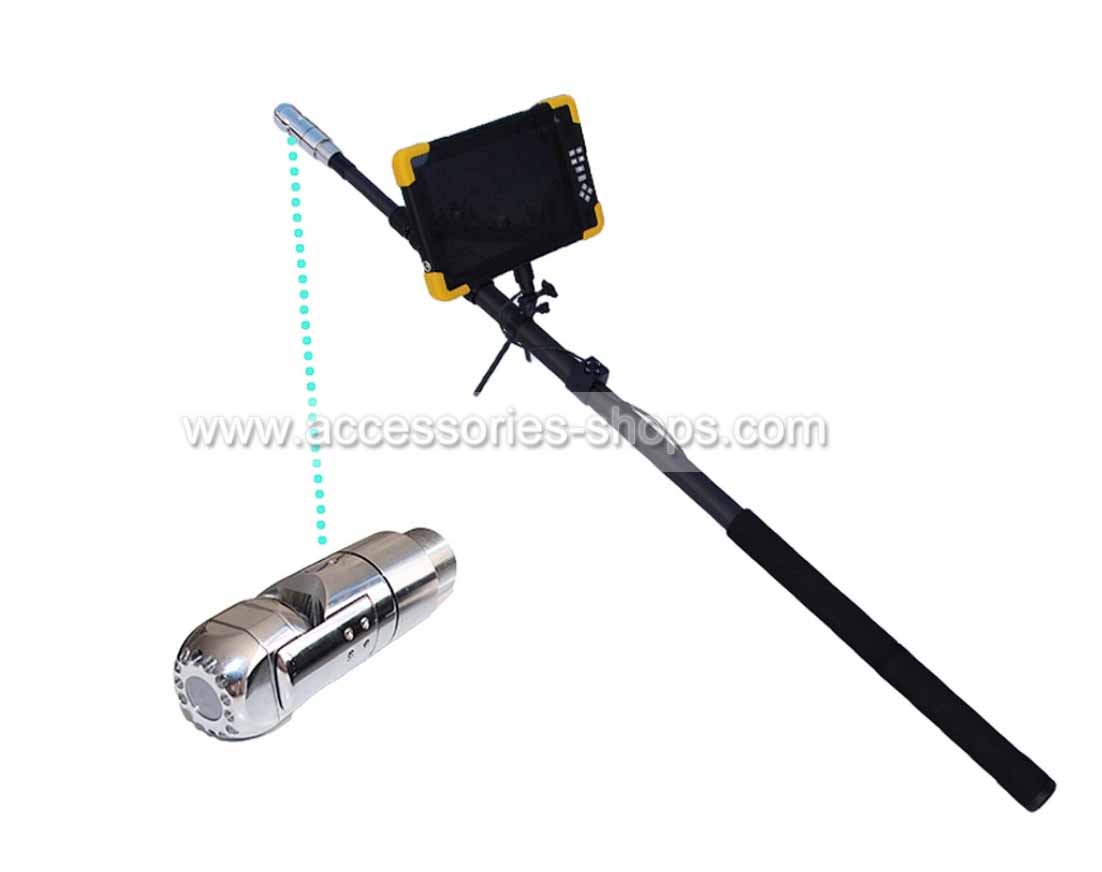

Multifunctional Audio-Video Life Detector is the third eye and ear in the slits of ruins of Rescue teams, helping them accurately identify the orientation of the survivors, rescuing survivors who are in the light. It is made of a 5m light-weight Fiber Carbon Pole which is able to reach out into depths and void space up to a distance up to 5m. different kinds of detector cameras, 360 ° Waterproof camera, 360 PT talkback camera a snake eye flexible mini camera or thermal image camera can and 8mm endoscope cam etc. and 10.1-inch recording monitor.

This360 pan tilt earthquake lifesearch camera is used even in an environment without light.

The 10.1-inch high-definition LCD DVR displays high brightness 1000cd/m2 and supports 180 ° flip image, 4K,2K resolution recording, 12MP photos and 10 times zoom function, It also supports the inner keyboard to edit the photos.

Wireless transfer photos and videos to mobile and offer Latitude and longitude positioning.

The Multiple function Rescue Camera is suitable for earthquake, collapse, and building collapse under the ruins of rescue, suitable for fire, safety supervision, public security, municipal, manufacturing, technical rescue, trench rescue, urban search and rescue, vehicle rescue and other scenes.

Specifications:

10.1“4K Touch Screen Recording Monitor
Display	10.1 inch 1280 * 800 px
Touch screen structure process	Capacitive touch
Video recording	4K(16:9): 3840x2160
	2K(4:3): 2560x1944
	2K(16:9): 2560x1440
	1080p(16:9): 1920X1080@25 /30fps
Video input	4K 25fps,4K 30fps,2K 25fps, 2K 30fps,1080P 25fps,1080P 30fps,720P 25fps, 720P 30fps,CVBS pal, CVBS ntsc
Video format	MP4
Photo	12MP,8MP,4MP,2MP
Video Output	HDMI 1080P
Compression mode	H. 264 video compression
Audio input/output	1.0Vp-p (20Hz-20KHz)
Speaker Output	1W
Memory card	TF card 2GB-256GB
Language	Varied
WiFi Protocol	802.11 a/b
WiFi Channel	2.4000-2.4835Ghz
WiFi power	<16dBm
Power Supply	DC 12V 2.5A
lithium battery	6200mAh( 48Wh)
Complete working time	6-8 hours
Waterproof grade	IP65
Screen size&weight	LWH 30191.8CM,865g
Flexible Snake tube 23mm Intercom Camera
Sensor	5MP Cmos 2560*1944 PX
light source	12LED or ir850nm IR
Minimum illumination	0.08Lux/F1.2
Lens	2.8mm F2.2 141.9°
size and weight	D:23mm*38mm, Flexible length:38mm
Camera housing material	Black color Aluminum alloy
Flexible Snake tube 23mm waterproof Camera
Sensor	5MP Cmos 2560*1944 PX
light source	12LED or ir850nm IR
Minimum illumination	0.08Lux/F1.2
Lens	2.8mm F2.2 141.9°
size and weight	D:23mm*49mm, Flexible length:38mm
Camera housing material	Black color Aluminum alloy
Thermal Image Camera support Talkback
Detector	Polycrystalline Silicon Uncooled Focal Plane Array
Infrared image resolution	256*192px
Wavelength coverage	8—14um
Lens/Field angle	4mm /F1.0 / FOV 64°*49°
Temperature range	20℃ to 550℃ (-4°F to 1022°F)
control Temperature	(-40°C to 60°C)
Temperature measurement accuracy	±2°C or ±2%
Communication range	about 300 cubic meter
Color Palette	White Hot/Gold/Ironbow/Rainbow/Glow/Aurora/Red Hot
Color Palette	Jungle/Medical/Black Hot/Gold-Red
Size	29*48mm
Light source	8 pcs LED
Heat tracking	Support
5MP 3405 deep water camera with 20m wires
Sensor	5MP Cmos 2560*1944 PX
light source	12LED or ir850nm IR
Minimum illumination	0.08Lux/F1.2
Lens	2.8mm F2.2 141.9°
size and weight	D:34mm
Camera housing material	316 stainless steel
Cable length	20m 4.2mm
360 PT Talkback Camera
Sensor	5MP Cmos 2560*1944 PX
light source	12 LED or ir850nm IR led
Minimum illumination	0.01Lux/F1.2
Lens	2.8mm F2.0 134.7°
PTZ rotate	Horizontal: 360 ° circular; Vertical:270°
size and weight	D:39mm*57mm Rotation part，Total length：153mm
Camera housing material	Black color Aluminum alloy

360 PT Talkback Thermal Image Camera
light source	12 LED or ir850nm IR led
Minimum illumination	0.01Lux/F1.2
Lens	2.8mm F2.0 134.7°
PTZ rotate	Horizontal: 360 ° circular; Vertical:270°
size and weight	D:39mm*57mm Rotation part，Total length：153mm
Camera housing material	Black color Aluminum alloy
Detector	Polycrystalline Silicon Uncooled Focal Plane Array
Infrared image resolution	256*192px
Wavelength coverage	8—14um
Lens/Field angle	4mm /F1.0 / FOV 64°*49°
Temperature range	20℃ to 550℃ (-4°F to 1022°F)
control Temperature	(-40°C to 60°C)
Temperature measurement accuracy	±2°C or ±2%
Communication range	about 300 cubic meter
Color Palette	White Hot/Gold/Ironbow/Rainbow/Glow/Aurora/Red Hot
Color Palette	Jungle/Medical/Black Hot/Gold-Red
Heat tracking	Support
360 PT LED Waterproof Camera( Cannot work work underwater for long time)
Sensor	5MP Cmos 2560*1944 PX
light source	12 LED or ir850nm IR led
Minimum illumination	0.01Lux/F1.2
Lens	2.8mm F2.0 134.7°
PTZ rotate	Horizontal: 360 ° circular; Vertical:270°
size and weight	D:39mm*57mm Rotation part，Total length：153mm
Camera housing material	Silver color Aluminum alloy
8mm snake camera
Resolution	1280*720P
light source	8 pcs LED
Minimum illumination	0.01Lux/F1.2
View angle	75 deg
camera diameter	8mm
camera cable	flexible gooseneck cable 3m
Carbon Fiber Telescopic Pole
Material	Carbon Fiber
Unfold length	5.15 meter/3.6m
Fold length	1.38 meter/ 0.95m
package	1262814/CM, G.W:10kg, N.G:5.8kg
