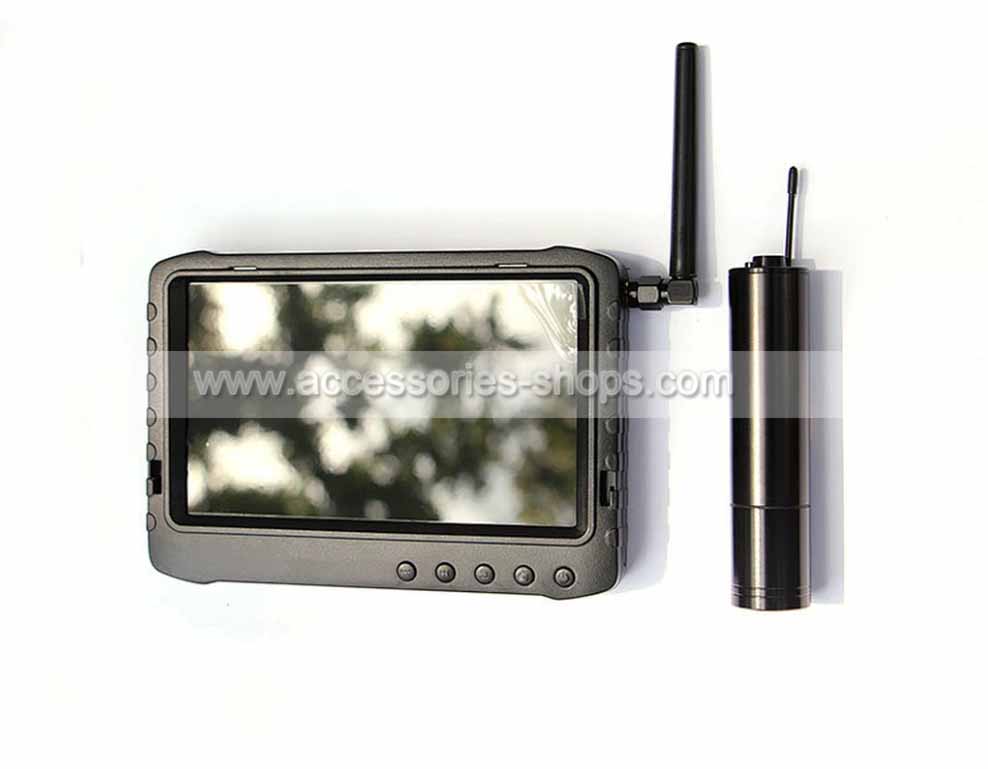

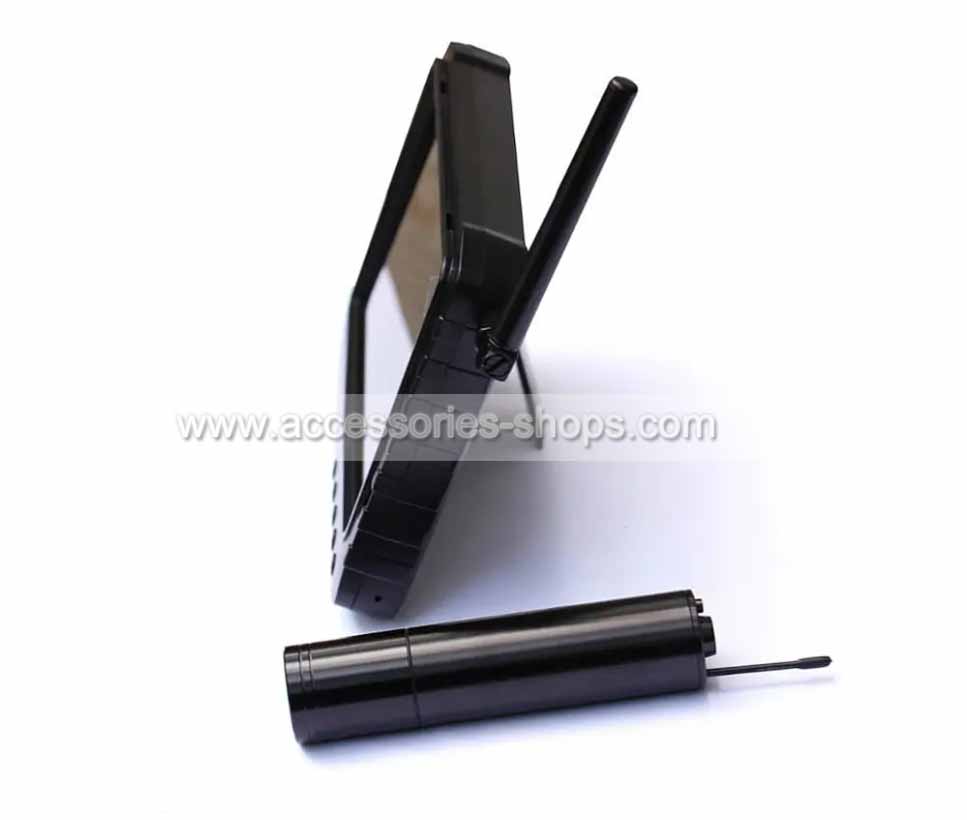

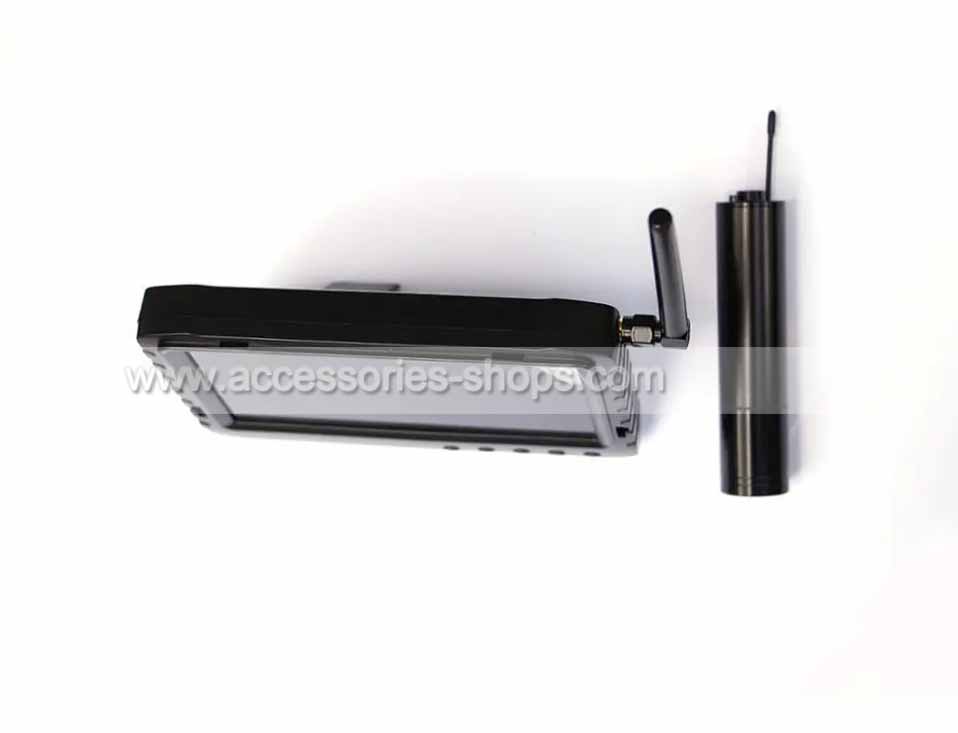

Industrial Endoscopy Camera with DVR Narrow Space Probe CCVR Wireless Camera and 5-inch 2.4GHz Wireless AHD DVR
It comes with a 5-inch HD screen, can record videos and take pictures, with large DVR memory up to 32GB. The Li-Battery lasts up to 9.5 hours.
Industrial Endoscope Inspection 5" 2.4GHz Wireless AHD DVR Wireless LED CCTV Camera for Narrow Space Inspection, AV IN/OUT (800x480 pixels, 3800mAh battery, 6 LED lights, 5-inch LCD screen, sewer inspection, pipe detection)
* 2.4GHz Headset Wireless camera DVR
* 6 LED/IR lamp for dark view
* 480tvl, 90 deg view angle
* 380mAh li-battery powered
* 50mw transmitter inside with audio
* 5"800*480pix LCD screen with sunshade
* No blue screen, real time display
* 92dbi sensitivity receiver
* Support AV-IN/AV-OUT
* Support 2-32GB storage tf card
* Headset holder to help you to fix camera
2.4GHz wireless pipeline inspection system, with 360-degree rotating snapshots to secure the camera on a pole and expand your field of view, making it very easy to inspect pipelines and chimneys. The TE910H was formerly used for inspecting hard-to-reach, dark, and dangerous areas, such as automatic engines and gear inspections; specialized medical examinations, such as dentistry, dermatology, gynecology, etc.; various pipelines and ducts, building inspections; anti-terrorism search and rescue; security inspections; archaeology, and more.
Frequency
CH1 : 2414Mhz-CH8:2370Mhz (1ch from 8)
SYSTEM
NTSC/PAL
Total Pixels
NTSC:656(H)x492(V); PAL:786(H)x576(V)
RF OUTPUT POWER
50mw
TRANSMISSION RANGE
100 meter without interference
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F1.2 90¡ã
LENS FOCUS
10-100CM(adjustable
SIZE(LxD)
20 x 84mm
Li-BATTERY
380Mah
POWER REQUIREMENT
5V
Light Source
R940/IR850/ Lighting LED 6pcs
AUDIO
SUPPORT
SPECIFICATION OF DVR MONITOR
Wireless Receiver
CH1:2414MHz;CH2:2432MHz;CH3:2450MHz;CH4:2468MHz.
CH5:2490MHz;CH6:2510MHz;CH7:2390MHz;CH8:2370MHz
Sensitivity
-88dB
TV system
NTSC/PAL
AV-IN/AV-OUT Output voltage
3.6-4.2 V
Resolution of monitor
800 x 480 Pixel
Brightness of monitor
300 cd/m²
Record/Take Photo Resolution
720 * 576/640 * 480
Video compress
MPEG-AVI 30fps
Play format
MPEG-AVI
Audio Sub frequency
2.4Ghz:6.0Mhz
Speaker
1W
Storage
TF card 1GB-32GB (optional)
Operating system
Windows & Mac OS
Port
2.5mm AV-IN, Standart AV-OUT,USB2.0
Language
Multiple
Current&Voltage
340MA-680MA/DC 5V 2A
Built-in battery
Rechargeable Li-battery 4000Mah
Standby time
¡Ý8 hours
DVR Size&Weight
131mmx 90.5mm x 18mm/131mm x 90.5mm x 28mm
215g/260g
