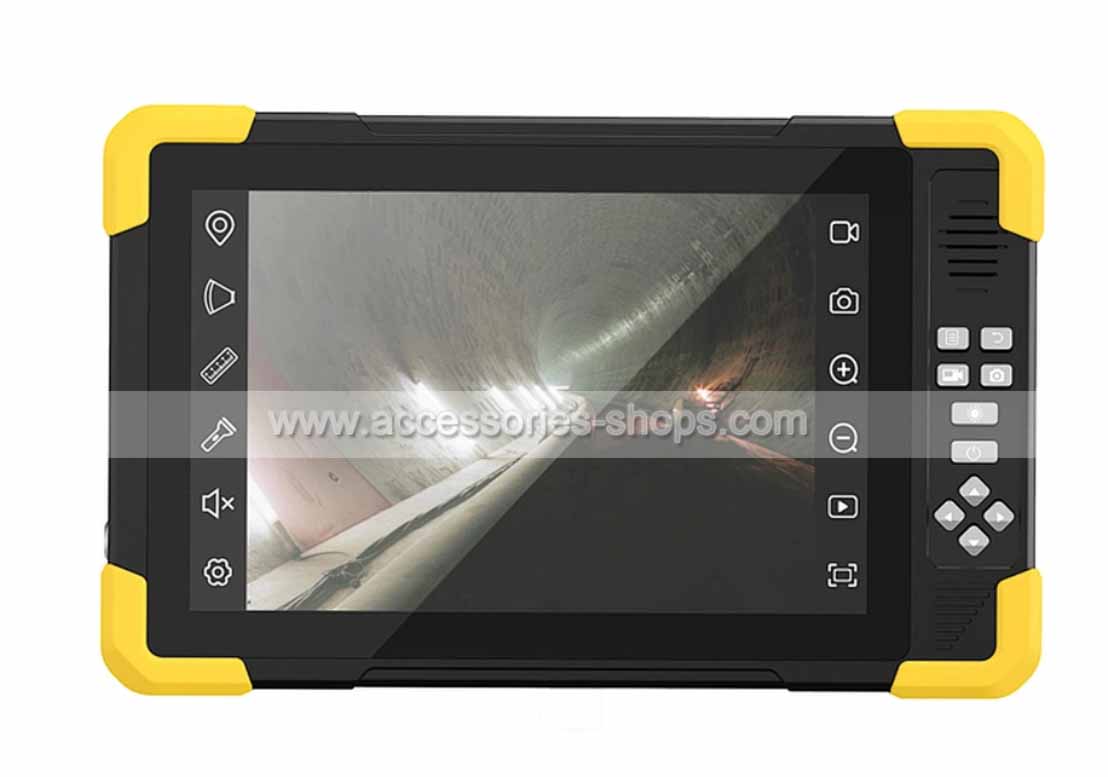

it with 4K high resolution, with recording, display, playback, 8 times zoom functions,campatible Lemo aviation connector, USB, BNC connector. support 4K, 2K,1080P, 720P, CVBS camera inpurt. that is good for industrial, medical, welding solder areas and so on.
Features:
1) Waterproof grade: IP65
2) Hand strap is removeable and adjustable
3) 10.1 inch full view(1280*800pix) IPS screen
4) Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
5) Video Output: HDMI 1080P
6) Support 4K,2K,1080P,720P,480P Record, photo, playback
7) Video compression format:H.264
8) Max Storage: up to 256GB TF card
9) Compressed video and audio are synchronous
10) Built-in 6500mAh high capacity Li-battery, Battery is exchangeable
Specification
|
Display |
Panel |
10"LCD panel |
|
Resolution |
1280*800 (optional 1920*1200) |
|
screen mode |
Touch Screen |
|
Contrast ratio |
800 |
|
Luminance |
800cd/m2 |
|
Aspect Ratio |
9:16 or 4:3 |
|
Interface |
Card slot |
TF card max 256GB |
|
USB |
USB host*1 |
|
LEMO Connector |
10 pin within video audio etc |
|
Aviation Connector |
10 pin within video audio led etc |
|
Power jack |
DC power input |
|
Earphone |
3.5mm earphone |
|
MDVR |
Video Input format |
5MP AHD,2K,1080P,720P CVBS
8MP LVDS and USB |
|
Record Video Resolution |
4K,2K,1080P,720P |
|
Video compression |
H.264 |
|
Audio format |
AAC etc. |
|
Video Output format |
4K(3840*2160px) output |
| |
Photo |
12MP,8MP,5MP,2MP for option |
|
Special function |
Zoom in/out |
Photo zoom in/out |
|
Speak& Listen |
2*2W |
|
Photo Edit |
Support Photo Edition |
|
Ratio Switch |
9:16 or 4:3 |
|
Working temp |
0--40 degree |
|
Certificates |
CE, FCC, RoHS |
|
Language |
Multi-language |
|
Accessories |
Adapter |
Adapter, 12V/3A |
|
User manual |
yes |
|
|
