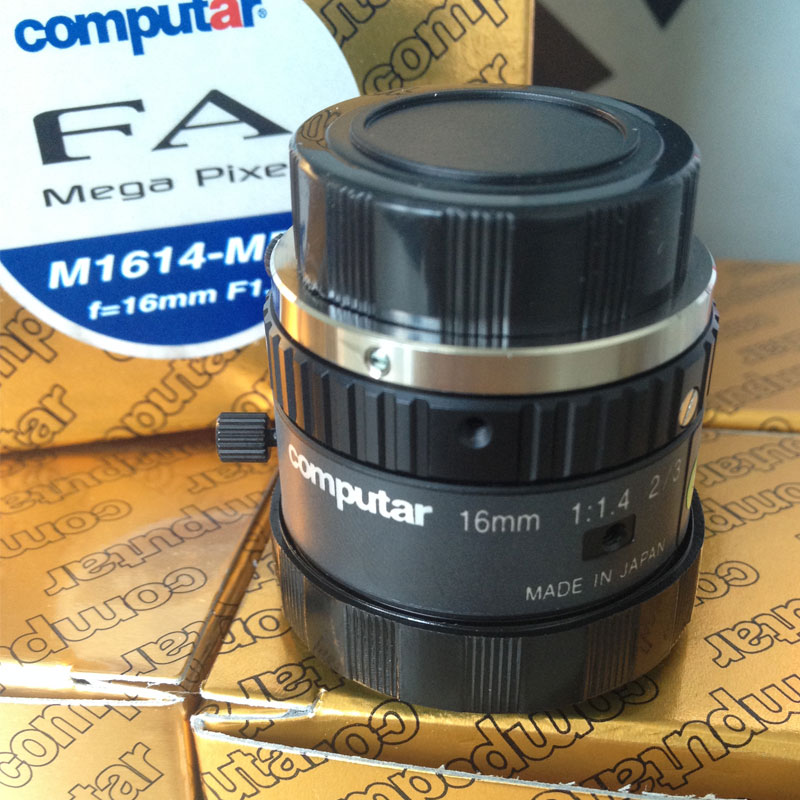

Computar M1614-MP2 HD Industrial Camera Lens 16MM Million Pixels CCTV Camera Len
| Focal Length |
16mm |
| Max. Aperture Ratio |
1:1.4 |
| Max. Image Format |
8.8mm x 6.6mm(¦µ11mm) |
| Operation Range |
Iris |
F1.4-F16C |
| Focus |
0.3m-Inf. |
| Control |
Iris |
Manual |
| Focus |
Manual |
| Object Dimension at M.O.D. |
17.2mm x 12.9cm 2/3" |
| Angle of View |
D |
2/3" |
38.0¡ã |
1/2" |
28.2¡ã |
| H |
30.8¡ã |
22.7¡ã |
| V |
23.4¡ã |
17.1¡ã |
| Operating Temperature |
-10¡ãC~+50¡ãC |
| Distortion |
2/3" |
-0.01%(y=5.5) |
1/2" |
-0.3%(y=4.0) |
| Back Focal Length |
13.1mm |
| Flang Back Length |
17.526mm |
| Mount |
C-Mount |
| Filter Size |
M30.5 P=0.5mm |

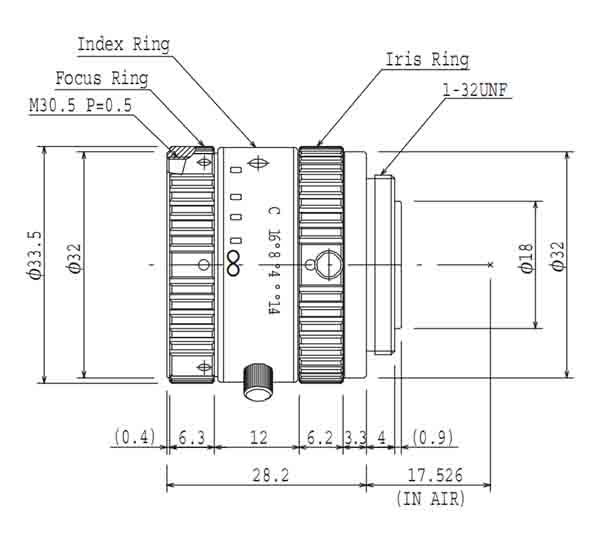

| Dimensions |
¦µ33.5mm x 28.2mm |
| Weight |
60G |
| Working Distance (mm) |
Optical Magnification (mm) |
Extension Ring (mm) |
Field of View(mm) |
| 2/3" |
1/2" |
| H |
V |
H |
V |
| 900 |
0.018X |
- |
503.2 |
376.8 |
365.4 |
273.3 |
| 850 |
0.019X |
- |
475.6 |
356.2 |
345.3 |
258.6 |
| 800 |
0.020X |
- |
448.0 |
335.5 |
325.3 |
243.6 |
| 750 |
0.021X |
- |
420.4 |
314.8 |
305.2 |
228.6 |
| 700 |
0.023X |
- |
392.8 |
294.1 |
285.2 |
213.6 |
| 650 |
0.024X |
- |
365.2 |
273.4 |
265.1 |
198.5 |
| 600 |
0.026X |
- |
337.6 |
252.8 |
245.1 |
183.5 |
| 550 |
0.029X |
- |
310.0 |
232.1 |
225.0 |
168.5 |
| 500 |
0.031X |
- |
282.5 |
211.4 |
204.9 |
153.5 |
| 450 |
0.035X |
- |
254.9 |
190.7 |
184.9 |
138.4 |
| 400 |
0.039X |
- |
227.3 |
170.0 |
164.8 |
123.4 |
| 350 |
0.044X |
- |
199.7 |
149.4 |
144.8 |
108.4 |
| 300 |
0.052X |
- |
172.1 |
128.7 |
124.7 |
93.4 |
| 250 |
0.061X |
0.5 |
144.5 |
108.0 |
104.7 |
78.3 |
| 200 |
0.076X |
0.5 |
116.9 |
87.3 |
84.6 |
63.3 |
| 150 |
0.100X |
0.5 |
89.3 |
66.6 |
64.6 |
48.3 |
| 100 |
0.145X |
1.0 |
61.7 |
45.9 |
44.5 |
33.2 |
|
