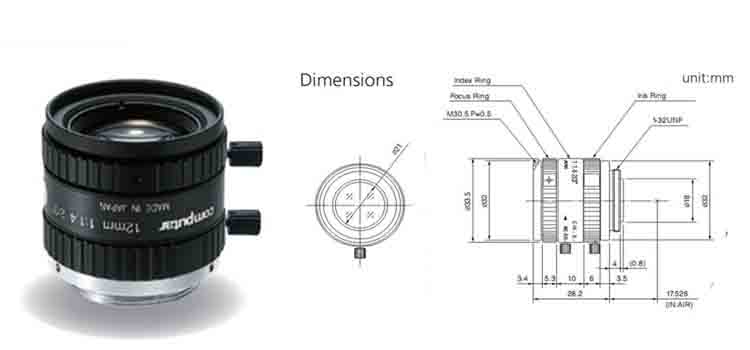

Computar M1214-MP2 Million Vision Industry Camera Lens 12mm C Interface
Capture all live megapixel resolution camera
Low deformation rate of less than 1.0%)
Focus and aperture locking screw
The entire screen area have high contrast and clear image
Compact design (diameter: 35.5mm)
| Focal Length |
12mm |
| Max. Aperture Ratio |
1:1.4 |
| Max. Image Format |
8.8mm x 6.6mm(¦µ11mm) |
| Operation Range |
Iris |
F1.4-F16C |
| Focus |
0.15m-Inf. |
| Control |
Iris |
Manual |
| Focus |
Manual |
| Object Dimension at M.O.D. |
12.1(H)cm x 9.0(V)cm 2/3" |
| Angle of View |
D |
2/3" |
49.2¡ã |
1/2" |
37.0¡ã |
| H |
40.4¡ã |
30.0¡ã |
| V |
30.8¡ã |
22.7¡ã |
| Operating Temperature |
-10¡ãC~+50¡ãC |

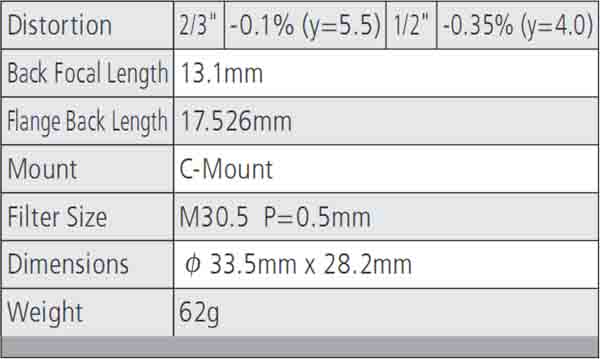

| Distortion |
2/3" |
-0.01%(y=5.5) |
1/2" |
-0.35%(y=4.0) |
| Back Focal Length |
13.1mm |
| Flang Back Length |
17.526mm |
| Mount |
C-Mount |
| Filter Size |
M30.5 P=0.5mm |

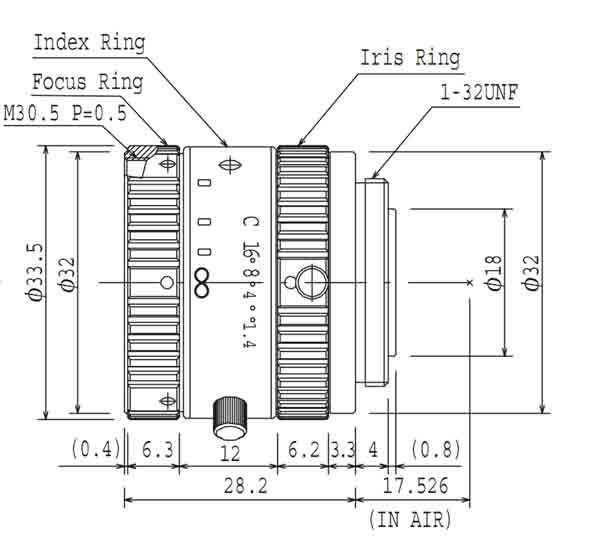

| Dimensions |
¦µ33.5mm x 28.2mm |
| Weight |
62G |
|
