Megapixels HD genuine original Computar M0814-MP2 8MM Fixed Focus Camera Industrial CCTV Camera Lenes 2/3 inch C Interface
Brand: Computar
Model:M0814-MP2
Specifications Interface: 2/3 "C-type
Focal length: f = 8mm
The ratio of the focal length of the lens diameter and maximum of 1: 1.4
The maximum image size of 8.8mm 6.6mm (11mm)
Working range Aperture 1.4-16C
Focus 0.1m-Inf
Lens Type:Industrial Lens2/3 inch megapixels fixed focus 8mm manual iris
| Focal Length |
8mm |
| Max. Aperture Ratio |
1:1.4 |
| Max. Image Format |
8.8mm x 6.6mm(¦µ11mm) |
| Operation Range |
Iris |
F1.4-F16C |
| Focus |
0.1m-Inf. |
| Control |
Iris |
Manual |
| Focus |
Manual |
| Object Dimension at M.O.D. |
12.1(H)cm x 9.0(V)cm 2/3" |
| Angle of View |
D |
2/3" |
67.1¡ã |
1/2" |
51.9¡ã |
| H |
56.3¡ã |
42.5¡ã |
| V |
43.7¡ã |
32.4¡ã |
| Operating Temperature |
-10¡ãC~+50¡ãC |
| Distortion |
2/3" |
-0.01%(y=5.5) |
1/2" |
-1.1%(y=4.0) |
| Back Focal Length |
13.1mm |
| Flang Back Length |
17.526mm |
| Mount |
C-Mount |
| Filter Size |
M30.5 P=0.5mm |

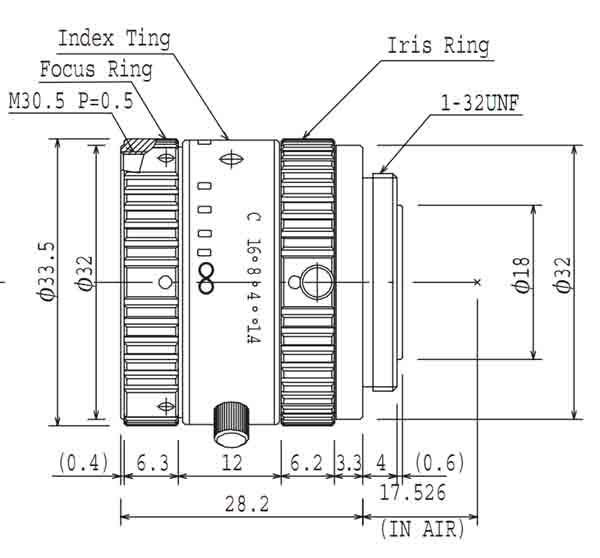

| Dimensions |
¦µ33.5mm x 28.2mm |
| Weight |
63G |
|
