* Color camera board
* The overall excellent performance, image quality is clear and bright
* Size: (L*W*H)38〜38〜13mm
Description:
|
Sensor |
1/3" SONY 138+FH8520 CMOS color camera board |
|
Signals System |
PAL |
NTSC |
|
Total Pixels |
PAL:1312(H)x1069(V) |
NTSC:1312(H)x1069(V) |
|
Effective Pixels |
PAL:1280(H)x1024(V) |
NTSC:1280(H)x1024(V) |
|
Minimum illumination |
0.1 LUX / F1.2 |
|
Horizontal Resolution |
1200TVL |
|
Scanning frequency |
50Hz 60Hz |
|
Gamma value |
0.45 |
|
Electronic Shutter |
1/50~ 1/100000s |
1/60~1/100000s |
|
SNR |
>46dB |
|
video output |
1.0V p-p |
|
Operating Temperature |
-20 º C to 50 º C |
|
Operating humidity |
Relative humidity is lower than 95 % |
|
Power |
DC12V (＼10%) |
OSD:
| Image |
3D |
On/Off |
| Exposure mode |
Global Exposure / Center-weighted / center weighted metering / BLC / light compensation money / Features Exposure |
| White balance |
PRO/TEMPORA/AI/GW/CCT |
| Image enhancement |
Sharpen |
Details sharpening |
Auto/Manual |
| Edge sharpening |
Auto/Manual |
| Contrast |
Gain mapping / auto / manual |
| saturability |
Auto/Manual |
| mirror |
On/Off |
| Reversion |
On/Off |
| Reference brightness |
0-250 |
| Digital AMP |
0-5 |
| Day & Night |
Auto / external trigger / color / black and white |
| Regional Shield |
Color |
Mosaic / white / yellow / blue / green / magenta / red / blue / black |
| area |
0-7 |
| Motion detection |
Sensitivity |
High / medium / low / weak |
| area |
0-3 |
| Video starnard |
PAL/NTSC |
| Language |
Chinese/English |

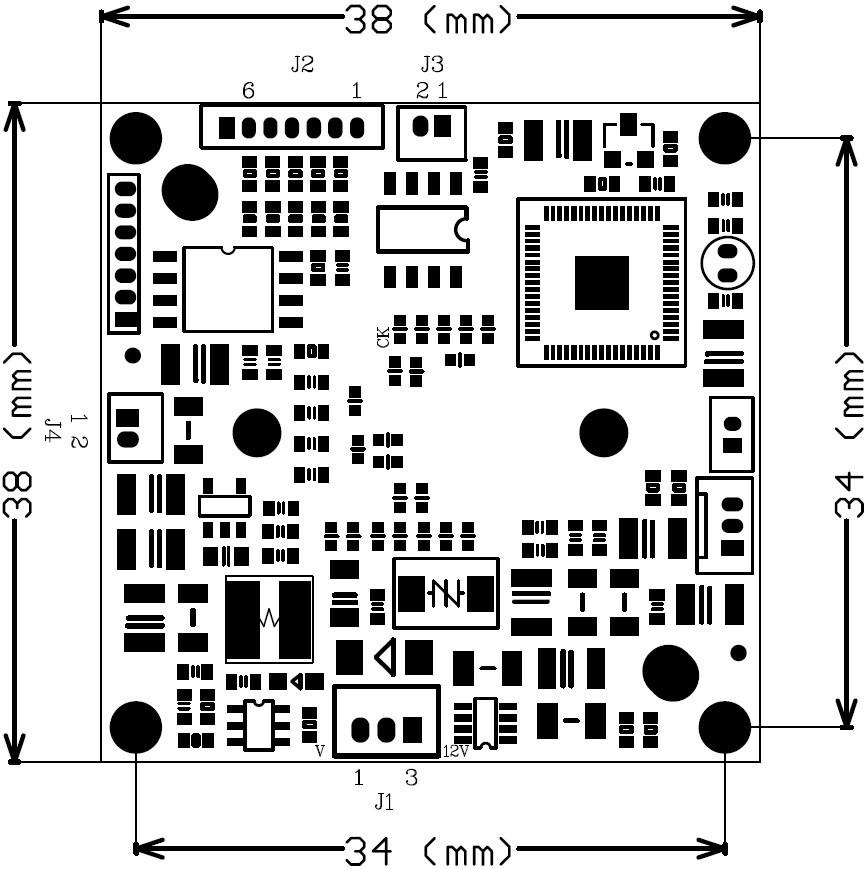

Size: ( Unit: mm /0.3mm )
| J1 |
J2 |
J3 |
J4 |
| P1 |
VIDEO |
P1 |
GND |
P1 |
IR-CUT1 |
P1 |
CDS |
| P2 |
GND |
P2 |
MENU |
P2 |
IR-CUT2 |
P2 |
GND |
| P3 |
DC12V |
P3 |
RIGHT |
|
|
|
|
|
|
P4 |
DOWN |
|
|
|
|
|
|
P5 |
LEFT |
|
|
|
|
|
|
P6 |
UP |
|
|
|
| |
