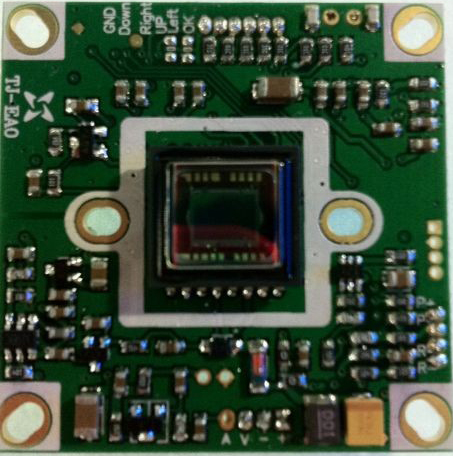

650TVL HD SONY Effio DSP CCD Color Board Camera OSD Board Camera
Condition:brand-new
|
|
Features:
- 1/3 SONY EFFIO-E 650TVL (4127+673) color CCD board camera
- Scanning system: PAL/NTSC
- Color: 650TVL, black and white: 700TVL, High quality image
- Low lux :0.01LUX
- 38mm x 38mm (1.5inch x1.5inch)
- OSD menu line control
- Image Sensor:1/3" SONY Exview HAD CCD
- Size:38*38MM
- Operating Temperature:-10 C to +50 C
Specification
| Signal Systemm |
NTSC / PAL |
| CPU |
SONY Effio-E DSP (CXD4127:760H/960H) |
| Image Sensor |
1/3'' SONY Exview HAD CCD |
| Pixel |
NTSC: 976 x 494, PAL: 976 x 582 |
| Sync. System |
Internal Sync |
| Horizontal Resolution |
650 TV Line (BW 700TV Line) |
| Sensitivity |
0.01Lux |
| ESC |
(NTSC - 1/60 - 1/60.000), (PAL - 1/50 - 1/60.000) |
| Manual Shutter |
1/60, 1/250, 1/700, 1/1K, 1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K |
| DNR |
LOW, MIDDLE, HIGH, OFF |
| Auto Gain Control |
0.25, 0.50, 0.75, 1.00grades for adjustment, max up to 54dB |
| Backlight Compensation |
High Brightness Backlight Compensation (HLC)/ Backlight Compensation |
| Exposure mode |
Electron exposure |
| ATW / MANUAL / PUSH |
| SBLC |
OFF / LOW / MID / HIGHH |
| AGC |
OFF, ON |
| Day / Night |
COLOR, B/W, EXT, AUTO |
| Motion Detection |
ON / OFF (4 Programmable Zone) |
| Privacy |
ON / OFF (4 Programmable Zone) |
| Mirror |
HORIZONTAL |
| Sharpness |
1 - 20 |
| OSD Language |
English, German, French, Russian, Portuguese, Spanish, Japanese, Chinese |
| Video output |
1Vp-p 75 Ohm, Negative |
| Luminance S/N Ration |
52dB( AGC off ) |
| Supply Voltage |
12V DC (+10% -20%) |
| Power Consumption |
110mA (Max) |
| Operating Temperature |
-10 C to +50 C / (Humidity) 30% to 80% RH |
| Size |
38mm x 38mm (1.5inch x1.5inch) |
|
|
|
